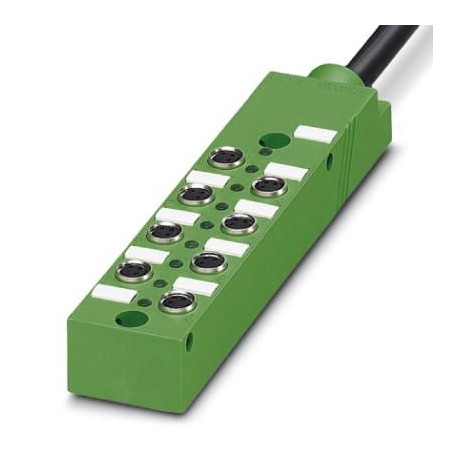

SACB- 8/4-L-10,0PUR-M8 1516124 PHOENIX CONTACT Sensor/actuator box
SACB- 8/4-L-10,0PUR-M8
1516124
PHOENIX CONTACT
1 Pcs.
Sensor/actuator box
Sensor/actuator box, application: Standard, connection type: Female M8 Metal, number of plug-in seats: 8, number of poles: 4, coding: A - standard, occupation of plug-in positions: Double, status indication: Yes, pnp; main cable connection: 180° fixed connection, PUR/PVC, cable length: 10 m, shielding: no
Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1516124 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 266 (C-2-2017) |
| GTIN | 4017918967109 |
| Weight per Piece (excluding packing) | 1,554.000 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
General
| Rated voltage | 24 V DC |
|---|---|
| Max. operating voltage Umax | 30 V DC |
| Current carrying capacity per I/O signal | 2 A |
| Current carrying capacity per slot | 2 A |
| Total rated current | 6 A |
| Number of positions | 4 |
| Number of slots | 8 |
| Flammability rating according to UL 94 | V0 |
| Sensor/actuator connection system | M8 socket |
Master cable connection data
| Connection method | Fixed connection |
|---|---|
| Length of cable | 10 m |
| Tightening torque slot sensor/actuator cable | 0.2 Nm |
Insulation material
| Housing material | PBT |
|---|---|
| Material of the moulding mass | PUR |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA |
| Material of threaded sleeve | Cu alloy |
| Material of threaded sleeve surface | Nickel-plated |
| O-ring material | NBR |
Pin assignment
| Slot/position = Wire color or connection | 1 / 4 (A) = WH |
|---|---|
| 1 / 2 (B) = GY/PK | |
| 2 / 4 (A) = GN | |
| 2 / 2 (B) = RD/BU | |
| 3 / 4 (A) = YE | |
| 3 / 2 (B) = WH/GN | |
| 4 / 4 (A) = GY | |
| 4 / 2 (B) = BN/GN | |
| 5 / 4 (A) = PK | |
| 5 / 2 (B) = WH/YE | |
| 6 / 4 (A) = RD | |
| 6 / 2 (B) = YE/BN | |
| 7 / 4 (A) = BK | |
| 7 / 2 (B) = WH/GY | |
| 8 / 4 (A) = VT | |
| 8 / 2 (B) = GY/BN | |
| 1-8 / 1 (+ 24 V) = BN | |
| 1-8 / 3 (0 V) = BU |
Standards and Regulations
| Standard designation | M8 connector |
|---|---|
| Standards/regulations | IEC 61076-2-104 |
| Connection in acc. with standard | CUL |
| Flammability rating according to UL 94 | V0 |
Cable
| Cable type | PUR/PVC black |
|---|---|
| Cable type (abbreviation) | PUR |
| Cable abbreviation | LiYY11Y-HF |
| Conductor cross section | 16x 0.34 mm² (Signal line) |
| 2x 0.75 mm² (Power supply) | |
| AWG signal line | 22 |
| AWG power supply | 18 |
| Conductor structure signal line | 42x 0.10 mm |
| Conductor structure, voltage supply | 96x 0.10 mm |
| Wire colors | brown, blue, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown |
| Overall twist | Wires twisted in layers |
| External sheath, color | deep black RAL 9005 |
| External cable diameter D | 10.1 mm ±0.2 mm |
| Number of bending cycles | 1500000 |
| Bending radius | 110 mm |
| Traversing path | 2 m |
| Traversing rate | 2 m/s |
| Outer sheath, material | PUR |
| Material, inner sheath | PVC |
| Material conductor insulation | PVC |
| Conductor material | Bare Cu litz wires |
| Nominal voltage, cable | 300 V (Signal line) |
| 500 V (Power supply) | |
| Test voltage, cable | 1200 V (Signal line) |
| 2000 V (Power supply) | |
| Special properties | Silicone-free |
| Flame resistance | DIN EN 50265 |
| Resistance to oil | according to VDE 0472 Part 803 |
| Other resistance | Highly resistant to acids, alkaline solutions and solvents |
| Ambient temperature (operation) | -40 °C ... 90 °C (cable, fixed installation) |
| -5 °C ... 80 °C (cable, flexible installation) |
