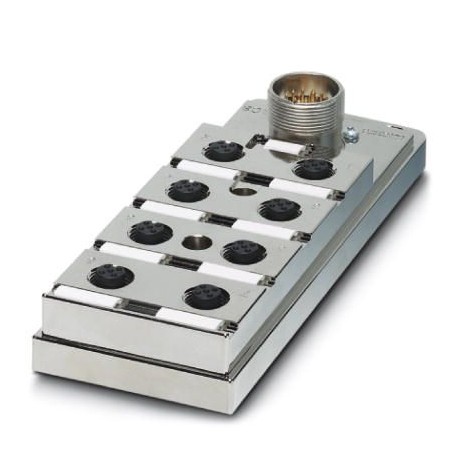

SACB-8/16-M23 SH 1695773 PHOENIX CONTACT Sensor/actuator box

SACB-8/16-M23 SH

1695773

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box Sensor/actuator box, application: Standard, connection type: M12 Metal female connector, number of plug-in stations: 8, number of poles: 5, coding: A - standard, occupation of plug-in stations: Double, status indication: No, Universal; Main cable connection: M23 90° plug-in connection, shielding: Yes

Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1695773
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 274 (C-2-2017)
GTIN4017918899417
Weight per Piece (excluding packing)392.800 g
Custom tariff number85366990
Country of originPL (Poland)

General

Rated voltage48 V
60 V DC
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot4 A
Total rated current12 A
Number of positions5
Number of slots8
Flammability rating according to UL 94V0
Sensor/actuator connection systemM12 socket

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 70 °C

Master cable data/connection data

Connection methodM23 plug connection
Tightening torque slot sensor/actuator cable0.4 Nm

Insulation material

Housing materialAluminum
Housing surface materialNickel-plated
Material of the moulding massPUR
Contact materialCu alloy
Contact surface materialgold-plated
Contact carrier materialPA
Material of contact, master cable sideCU alloy
Material of contact surface, master cable sideGold-plated
Material of the contact carrier on the master cable sidePA 6.6 V0
Material of threaded sleeveAluminum
O-ring materialNBR

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = 15
1 / 2 (B) = 7
2 / 4 (A) = 5
2 / 2 (B) = 4
3 / 4 (A) = 16
3 / 2 (B) = 8
4 / 4 (A) = 3
4 / 2 (B) = 14
5 / 4 (A) = 17
5 / 2 (B) = 9
6 / 4 (A) = 2
6 / 2 (B) = 13
7 / 4 (A) = 11
7 / 2 (B) = 10
8 / 4 (A) = 1
8 / 2 (B) = 18
1-8 / 1 (+ 48 V) = 19
1-8 / 3 (0 V) = 6
1-8 / 5 (PE) = 12

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
