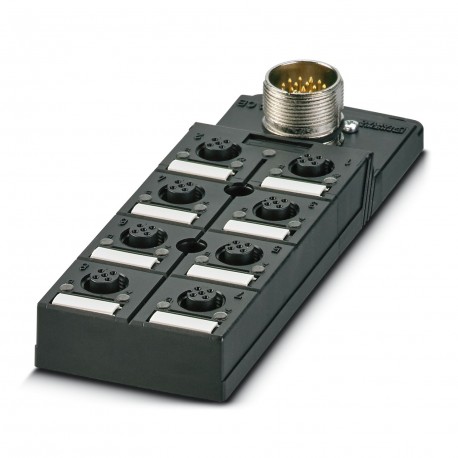

SACB-8/16-M23 1692844 PHOENIX CONTACT Sensor/actuator box

SACB-8/16-M23

1692844

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box Sensor/actuator box, application: Standard, connection type: M12 female connector Plastic, number of plug-in stations: 8, number of poles: 5, coding: A - standard, occupancy of plug-in stations: Double, status indication: No, Universal; Main cable connection: M23 90° plug-in connection, shielding: no Distributor box, application: Standard, connection method: M12 socket Plastic, number of slots: 8, number of positions: 5, coding: A, slot assignment: Double, status display: No, Universal; master cable connection: M23 plug connection 90°, shielding: no

Cables > Passive sensor-actuator interface (without cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Assembly noteNOTE:Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties.
Note on applicationUnused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties
Product typeDistributor box
ApplicationStandard
Number of positions5
Number of slots8
CodingA
LEDno
Electrical properties
Max. operating voltage Umax135 V
Nominal voltage UN120 V AC
120 V DC
Rated current, total12 A
Max. current carrying capacity per path2 A
Current carrying capacity per slot4 A
Connection data
Conductor connection
Sensor/actuator connection systemM12 socket
Tightening torque slot sensor/actuator cable0.4 Nm
Pin assignment
Slot/position = Wire color or connection1 / 4 (A) = 15
1 / 2 (B) = 7
2 / 4 (A) = 5
2 / 2 (B) = 4
3 / 4 (A) = 16
3 / 2 (B) = 8
4 / 4 (A) = 3
4 / 2 (B) = 14
5 / 4 (A) = 17
5 / 2 (B) = 9
6 / 4 (A) = 2
6 / 2 (B) = 13
7 / 4 (A) = 11
7 / 2 (B) = 10
8 / 4 (A) = 1
8 / 2 (B) = 18
1-8 / 1 (+ 120 V) = 19
1-8 / 3 (0 V) = 6
1-8 / 5 (PE) = 12
Signaling
Status display presentNo
Dimensions
Dimensional drawingdtosvixomz.jpg
Width54 mm
Height26 mm
Length155 mm
Material specifications
Material Threaded sleevePA
Material HousingPA
Flammability rating according to UL 94V0
Seal material O-ringNBR
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA
Material of contact, master cable sideCU alloy
Material of contact surface, master cable sidegold-plated
Cable/line
Connection methodM23 plug connection
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
Ambient temperature (operation)-20 °C ... 75 °C

ETIM for 1692844 Sensors (EC003558)
Feature Name Feature Value
Number of sensor-/actuator-slots (EF006939) 8
Number of channels per connector slot (EF006885) 2
Type of branches for sensor-/actuator cables (EF006972) M12
Number of poles sensor/actuator slots (EF007402) 5
Operating voltage (EF003983) 120 V
Max. current carrying capacity per I/O signal (EF004037) 12 A
Max. total current (EF004039) 12 A
Material of contact surface (EF004020) Other
With LED indication (EF005950) No
With potential separation (EF003272) No
Connection for NPN-sensors (EF006817) Yes
Operating temperature (EF002393) -20 °C
Degree of protection (IP) (EF005474) IP65
Explosion safety category for gas (EF003997) Other
Explosion safety category for dust (EF003998) Other
Width (EF000008) 54 mm
Height (EF000040) 26 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
