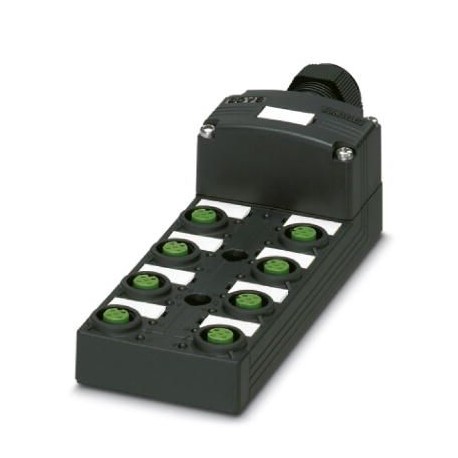

PHOENIX CONTACT SACB-8/16-L-SC SCO P SACB-8/16-L-SC SCO P 1453038 PHOENIX CONTACT Sensor/actuator box View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACB-8/16-L-SC SCO P 1453038 PHOENIX CONTACT Sensor/actuator box

SACB-8/16-L-SC SCO P

1453038

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box Sensor/actuator box, application: Standard, connection type: SPEEDCON M12 female connector Plastic, number of plug-in stations: 8, number of poles: 5, coding: A - standard, occupancy of plug-in stations: Double, status indication: Yes, pnp; Main cable connection: Spring connection 180°, shielding: No

Cables > Passive sensor-actuator interface (without cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1453038
Packing unit1 pc
Catalog pagePage 268 (C-2-2017)
GTIN4046356553650
Weight per Piece (excluding packing)221.300 g
Custom tariff number85366990
Country of originPL (Poland)

General

Rated voltage24 V DC
Max. operating voltage Umax30 V DC
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot4 A
Total rated current12 A
Number of positions5
Number of slots8
Flammability rating according to UL 94V0
Sensor/actuator connection systemM12-SPEEDCON-socket
NoteWhen connecting the signal lines to the black PCB terminal blocks, please use a 0.4 x 2.0 mm screwdriver.
The black PCB terminal blocks only require a minimal amount of operating force.
Screwdriver: SZS 0,4X2,0 - 1205202
Using larger screwdrivers or excessive force may damage the PCB terminal blocks.
When using ferrules, the wires can be inserted straight into the PCB terminal blocks without opening the clamping area.

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 80 °C

Local diagnostics function

Local diagnosticsSupply voltage Green LED
Status display I/O Yellow LED

Master cable data/connection data

Connection methodSpring-cage connection
Conductor cross section min. (signal)0.2 mm²
Conductor cross section max. (signal)0.5 mm²
Conductor cross section AWG min. (signal)24
Conductor cross section AWG max. (signal)20
Stripping length (signal)6 mm
Conductor cross section min. (energy)0.2 mm²
Conductor cross section max. (energy)1.5 mm²
Conductor cross section AWG min. (energy)24
Conductor cross section AWG max. (energy)16
Stripping length (power)10 mm
External cable diameter min.7 mm
External cable diameter max.12 mm
Stripping length50 mm (Master cable)
Tightening torque, cover screw1 Nm
Tightening torque, union nut2.5 Nm
Tightening torque slot sensor/actuator cable0.4 Nm
Tightening torque of mounting screw for fixing the housing0.5 Nm

Insulation material

Housing materialPBT
Material of the moulding massPUR
Contact materialCu alloy
Contact surface materialgold-plated
Contact carrier materialPA
Material of threaded sleevePBT
O-ring materialNBR
Sealing materialNBR (Connector hood)

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = WH
1 / 2 (B) = GY/PK
2 / 4 (A) = GN
2 / 2 (B) = RD/BU
3 / 4 (A) = YE
3 / 2 (B) = WH/GN
4 / 4 (A) = GY
4 / 2 (B) = BN/GN
5 / 4 (A) = PK
5 / 2 (B) = WH/YE
6 / 4 (A) = RD
6 / 2 (B) = YE/BN
7 / 4 (A) = BK
7 / 2 (B) = WH/GY
8 / 4 (A) = VT
8 / 2 (B) = GY/BN
1-8 / 1 (+ 24 V) = BN
1-8 / 3 (0 V) = BU
1-8 / 5 (PE) = GN/YE

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1453038 Sensors (EC003558)
Feature Name Feature Value
Connectable conductor cross section (EF008200) 0.2 mm²
Cable outer diameter for cable gland (EF007302) 7 mm
Number of sensor-/actuator-slots (EF006939) 8
Number of channels per connector slot (EF006885) 2
Type of branches for sensor-/actuator cables (EF006972) M12
Number of poles sensor/actuator slots (EF007402) 5
Operating voltage (EF003983) 24 V
Max. current carrying capacity per I/O signal (EF004037) 12 A
Max. total current (EF004039) 12 A
Material of contact surface (EF004020) Other
With LED indication (EF005950) Yes
With potential separation (EF003272) No
Connection for NPN-sensors (EF006817) No
Operating temperature (EF002393) -25 °C
Degree of protection (IP) (EF005474) IP65
Explosion safety category for gas (EF003997) Other
Explosion safety category for dust (EF003998) Other
Width (EF000008) 54 mm
Height (EF000040) 43 mm
