SACB-8/16-L-M23 1692459 PHOENIX CONTACT Sensor/actuator box

SACB-8/16-L-M23

1692459

PHOENIX CONTACT

1 Pcs.

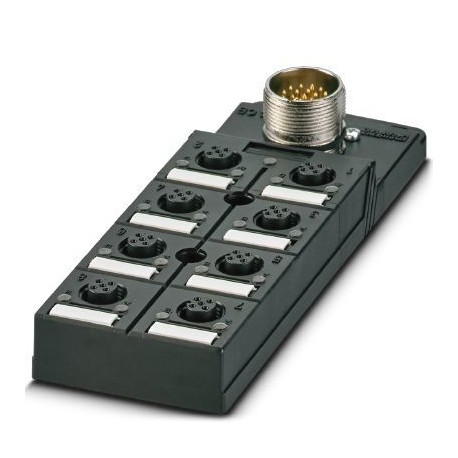

Sensor/actuator box Sensor/actuator box, application: Standard, connection type: M12 female connector Plastic, number of plug-in stations: 8, number of poles: 5, coding: A - standard, occupancy of plug-in stations: Double, status indication: Yes, pnp; Main cable connection: M23 90° plug-in connection, shielding: no

Cables > Passive sensor-actuator interface (without cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1692459
Packing unit1 pc
Catalog pagePage 114 (PC-2009)
GTIN4017918177911
Weight per Piece (excluding packing)137.700 g
Custom tariff number85366990
Country of originPL (Poland)

General

Rated voltage24 V DC
Max. operating voltage Umax30 V DC
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot4 A
Total rated current12 A
Number of positions5
Number of slots8
Flammability rating according to UL 94V0
Sensor/actuator connection systemM12 socket

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-20 °C ... 75 °C

Local diagnostics function

Local diagnosticsSupply voltage Green LED
Status display I/O Yellow LED

Master cable data/connection data

Connection methodM23 plug connection
Tightening torque slot sensor/actuator cable0.4 Nm

Insulation material

Housing materialPA
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA
Material of contact, master cable sideCU alloy
Material of contact surface, master cable sideGold-plated
Material of the contact carrier on the master cable sidePA
Material of threaded sleevePA
O-ring materialNBR

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = 15
1 / 2 (B) = 7
2 / 4 (A) = 5
2 / 2 (B) = 4
3 / 4 (A) = 16
3 / 2 (B) = 8
4 / 4 (A) = 3
4 / 2 (B) = 14
5 / 4 (A) = 17
5 / 2 (B) = 9
6 / 4 (A) = 2
6 / 2 (B) = 13
7 / 4 (A) = 11
7 / 2 (B) = 10
8 / 4 (A) = 1
8 / 2 (B) = 18
1-8 / 1 (+ 24 V) = 19
1-8 / 3 (0 V) = 6
1-8 / 5 (PE) = 12

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1692459 Sensors (EC003558)
Feature Name Feature Value
Number of sensor-/actuator-slots (EF006939) 8
Number of channels per connector slot (EF006885) 2
Type of branches for sensor-/actuator cables (EF006972) M12
Number of poles sensor/actuator slots (EF007402) 5
Operating voltage (EF003983) 24 V
Max. current carrying capacity per I/O signal (EF004037) 12 A
Max. total current (EF004039) 12 A
Material of contact surface (EF004020) Other
With LED indication (EF005950) Yes
With potential separation (EF003272) No
Connection for NPN-sensors (EF006817) No
Operating temperature (EF002393) -20 °C
Degree of protection (IP) (EF005474) IP65
Explosion safety category for gas (EF003997) Other
Explosion safety category for dust (EF003998) Other
Width (EF000008) 54 mm
Height (EF000040) 26 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
