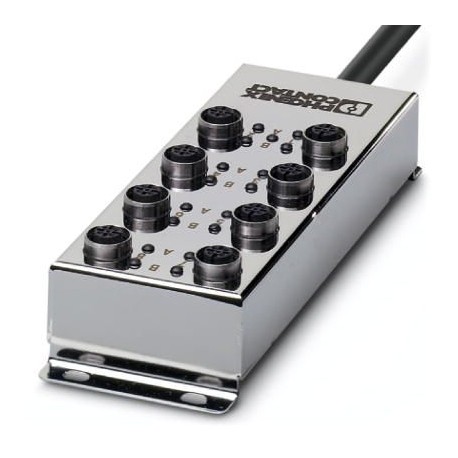

SACB-8/16-L- 5,0PVC FB 1555541 PHOENIX CONTACT Sensor/actuator box
SACB-8/16-L-5,0PVC FB
1555541
PHOENIX CONTACT
1 Pcs.
Sensor/actuator box
Sensor/actuator box, application: Food industry, connection type: M12 female connector Stainless steel, number of plug-in stations: 8, number of poles: 5, coding: A - standard, occupancy of plug-in stations: Double, status indication: Yes, pnp; Main cable connection: Fixed connection 180°, PVC, cable length: 5 m, shielding: no
Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1555541 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 146 (C-4-2013) |
| GTIN | 4046356170529 |
| Weight per Piece (excluding packing) | 1,458.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Rated voltage | 24 V DC |
|---|---|
| Max. operating voltage Umax | 30 V DC |
| Current carrying capacity per I/O signal | 2 A |
| Current carrying capacity per slot | 4 A |
| Total rated current | 12 A |
| Number of positions | 5 |
| Number of slots | 8 |
| Sensor/actuator connection system | M12 socket |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| IP69K | |
| Ambient temperature (operation) | -30 °C ... 80 °C |
| -40 °C ... 90 °C (for fixed installation) | |
| -5 °C ... 80 °C (for flexible installation) |
Master cable data/connection data
| Connection method | Fixed connection |
|---|---|
| Length of cable | 5 m |
| Signal line cross section | 16x 0.5 mm² |
| AWG signal line | 20 |
| Conductor structure signal line | 64x 0.10 mm |
| Power supply cross section | 3x 1 mm² |
| AWG power supply | 17 |
| Conductor structure, voltage supply | 128x 0.10 mm |
| External diameter | 11.6 mm |
| Max. bending cycles | 1000000 |
| Traversing path | 5 m |
| Traversing rate | 3 m/s |
| Tightening torque slot sensor/actuator cable | 0.4 Nm |
Insulation material
| Housing material | Stainless steel 1.4404 |
|---|---|
| Material of the moulding mass | PUR |
| Contact material | CuSn6 |
| Contact surface material | gold-plated |
| Contact carrier material | PBT |
| Material of threaded sleeve | Stainless steel 1.4404 |
| O-ring material | FKM |
Pin assignment
| Slot/position = Wire color or connection | 1 / 4 (A) = WH |
|---|---|
| 1 / 2 (B) = GY/PK | |
| 2 / 4 (A) = GN | |
| 2 / 2 (B) = RD/BU | |
| 3 / 4 (A) = YE | |
| 3 / 2 (B) = WH/GN | |
| 4 / 4 (A) = GY | |
| 4 / 2 (B) = BN/GN | |
| 5 / 4 (A) = PK | |
| 5 / 2 (B) = WH/YE | |
| 6 / 4 (A) = RD | |
| 6 / 2 (B) = YE/BN | |
| 7 / 4 (A) = BK | |
| 7 / 2 (B) = WH/GY | |
| 8 / 4 (A) = VT | |
| 8 / 2 (B) = GY/BN | |
| 1-8 / 1 (+ 24 V) = BN | |
| 1-8 / 3 (0 V) = BU | |
| 1-8 / 5 (PE) = GN/YE |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027143423eCl@ss 5.127250300eCl@ss 6.027279200eCl@ss 7.027279219eCl@ss 8.027279219eCl@ss 9.027440108
| Feature Name | Feature Value |
|---|---|
| Length of the preassembled cable (EF007300) | 5 m |
| Cable length configurable (EF007301) | No |
| Number of sensor-/actuator-slots (EF006939) | 8 |
| Number of channels per connector slot (EF006885) | 2 |
| Type of branches for sensor-/actuator cables (EF006972) | M12 |
| Number of poles sensor/actuator slots (EF007402) | 5 |
| Rated voltage (EF000228) | 24 V |
| Operating voltage (EF003983) | 24 V |
| Max. current carrying capacity per socket (EF004038) | 2 A |
| Max. total current (EF004039) | 12 A |
| Material of contact surface (EF004020) | Gold |
| Material insulation body (EF007543) | Other |
| With LED indication (EF005950) | Yes |
| With potential separation (EF003272) | No |
| Connection for NPN-sensors (EF006817) | No |
| Fix cable version suitable for cable guide chain (EF007461) | Yes |
| Housing colour (EF000136) | Other |
| Operating temperature (EF002393) | -30 °C |
| Degree of protection (IP) (EF005474) | IP65 |
| Explosion safety category for gas (EF003997) | Other |
| Explosion safety category for dust (EF003998) | Other |
| Width (EF000008) | 60 mm |
| Height (EF000040) | 34.9 mm |
| Depth (EF000049) | 170 mm |
