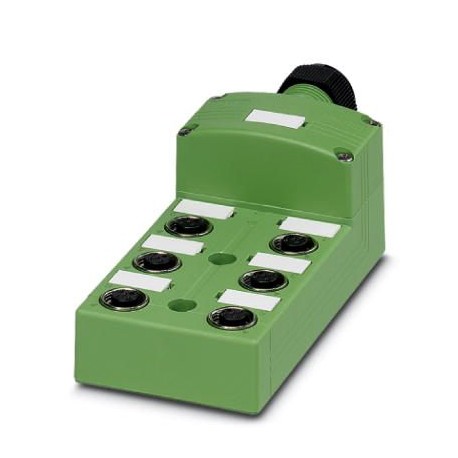

PHOENIX CONTACT SACB-6/ 6-C SCO SACB-6/ 6-C SCO 1516865 PHOENIX CONTACT Sensor/actuator box View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACB-6/ 6-C SCO 1516865 PHOENIX CONTACT Sensor/actuator box

SACB-6/ 6-C SCO

1516865

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box Sensor/actuator box, application: Standard, connection type: SPEEDCON M12 Metal female connector, number of plug-in stations: 6, number of poles: 4, coding: A - standard, occupation of plug-in stations: single, status indication: No, Universal; Main cable connection: 180° plug-in screw connection, shielding: No

Cables > Passive sensor-actuator interface (without cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1516865
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 270 (C-2-2017)
GTIN4017918967598
Weight per Piece (excluding packing)258.030 g
Custom tariff number85366990
Country of originPL (Poland)

General

Rated voltage120 V
Max. operating voltage Umax135 V
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot4 A
Total rated current10 A
2x 8 A (For electrical isolation)
Number of positions4
Number of slots6
Flammability rating according to UL 94V0
Sensor/actuator connection systemM12-SPEEDCON-socket
NoteFor details about the PCB connectors used, refer to the technical data for MC 1,5/10-STF-3,5 (1847204)

Ambient conditions

Degree of protectionIP65
IP67
IP69K
Ambient temperature (operation)-30 °C ... 80 °C

Master cable data/connection data

Connection methodPluggable screw connection
Conductor cross section min. (signal)0.14 mm²
Conductor cross section max. (signal)1.5 mm²
Conductor cross section AWG min. (signal)26
Conductor cross section AWG max. (signal)16
Stripping length (signal)7 mm
Conductor cross section min. (energy)0.14 mm²
Conductor cross section max. (energy)1.5 mm²
Conductor cross section AWG min. (energy)26
Conductor cross section AWG max. (energy)16
External cable diameter min.7 mm
External cable diameter max.12 mm
Stripping length50 mm (Master cable)
Tightening torque, cover screw0.35 Nm
Tightening torque, union nut2.5 Nm
Tightening torque slot sensor/actuator cable0.4 Nm
Tightening torque of mounting screw for fixing the housing0.5 Nm

Insulation material

Housing materialPBT
Material of the moulding massPUR
Contact materialCu alloy
Contact surface materialgold-plated
Contact carrier materialPA
Material of contact, master cable sideCU alloy
Material of contact surface, master cable sideGold-plated
Material of the contact carrier on the master cable sidePA 6.6 V0
Material of threaded sleeveZinc die-cast
Material of threaded sleeve surfaceNickel-plated
O-ring materialNBR

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = 1 / 4
2 / 4 (A) = 2 / 4
3 / 4 (A) = 3 / 4
4 / 4 (A) = 4 / 4
5 / 4 (A) = 5 / 4
6 / 4 (A) = 6 / 4
1-6 / 1 (+ 120 V) = UN
1-6 / 3 (0 V) = 0 V
1-6 / 5 (PE) = PE

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1516865 Sensors (EC003558)
Feature Name Feature Value
Connectable conductor cross section (EF008200) 0.14 mm²
Cable outer diameter for cable gland (EF007302) 7 mm
Number of sensor-/actuator-slots (EF006939) 6
Number of channels per connector slot (EF006885) 1
Type of branches for sensor-/actuator cables (EF006972) M12
Number of poles sensor/actuator slots (EF007402) 4
Operating voltage (EF003983) 120 V
Max. current carrying capacity per I/O signal (EF004037) 10 A
Max. total current (EF004039) 10 A
Material of contact surface (EF004020) Other
With LED indication (EF005950) No
With potential separation (EF003272) Yes
Connection for NPN-sensors (EF006817) Yes
Operating temperature (EF002393) -30 °C
Degree of protection (IP) (EF005474) IP65
Explosion safety category for gas (EF003997) Other
Explosion safety category for dust (EF003998) Other
Width (EF000008) 58 mm
Height (EF000040) 45 mm
