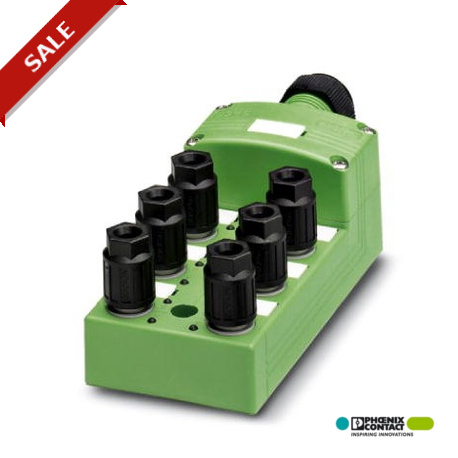

SACB- 6/3-L-C QO-0,34 1548338 PHOENIX CONTACT Sensor/actuator box, Application: Standard, Connection method:..

SACB- 6/3-L-C QO-0,34

1548338

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box, Application: Standard, Connection method: QUICKON, 0.14 mm² ... 0.34 mm², Number of slots: 6, Number of positions: 3, Slot assignment: single, Status indication: Yes, pnp; Master cable connection: Pluggable screw connection 180°, Shielding: No Sensor/Actuator Box, Application: Standard, Connection Type: QUICKON, 0.14 mm² ... 0.34 mm², number of plug-in stations: 6, number of poles: 3, occupation of plug-in stations: single, status indication: Yes, pnp; Main cable connection: 180° plug-in screw connection, shielding: No

Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General

Rated voltage24 V DC
Max. operating voltage Umax30 V DC
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot4 A
Total rated current10 A
2x 8 A (For electrical isolation)
Number of positions3
Number of slots6
Flammability rating according to UL 94V0
Sensor/actuator connection systemQUICKON

Ambient conditions

Degree of protectionIP65
IP67
IP69K
Ambient temperature (operation)-30 °C ... 80 °C

Local diagnostics function

Local diagnosticsSupply voltage per module Green LED
Status display I/O Yellow LED

Master cable data/connection data

Connection methodPluggable screw connection
Conductor cross section min. (signal)0.14 mm²
Conductor cross section max. (signal)1.5 mm²
Conductor cross section AWG min. (signal)26
Conductor cross section AWG max. (signal)16
Stripping length (signal)7 mm
Conductor cross section min. (energy)0.14 mm²
Conductor cross section max. (energy)1.5 mm²
Conductor cross section AWG min. (energy)26
Conductor cross section AWG max. (energy)16
External cable diameter min.7 mm
External cable diameter max.12 mm
Stripping length50 mm (Master cable)
Tightening torque, cover screw0.35 Nm
Tightening torque, union nut2.5 Nm
Tightening torque of mounting screw for fixing the housing0.5 Nm

Conductor data

Structure of individual litz in acc. with VDE 0295 / smallest wire diameterClass 2-6
Wire insulation materialPVC/PE/PP
Wire diameter including insulation0.7 mm ... 1.3 mm
Minimum external conductor diameter3.5 mm
Maximum external conductor diameter6 mm
Tightening torque, union nut2 Nm
Wrench size, union nut13 mm
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.0.34 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.22

Insulation material

Housing materialPBT
Material of the moulding massPUR
Contact materialSteel/copper
Contact surface materialSn
Material of contact, master cable sideCU alloy
Material of contact surface, master cable sideGold-plated
Material of the contact carrier on the master cable sidePA 66 V0

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = 1 / 4
2 / 4 (A) = 2 / 4
3 / 4 (A) = 3 / 4
4 / 4 (A) = 4 / 4
5 / 4 (A) = 5 / 4
6 / 4 (A) = 6 / 4
1-6 / 1 (+ 24 V) = UN
1-6 / 3 (0 V) = 0 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
