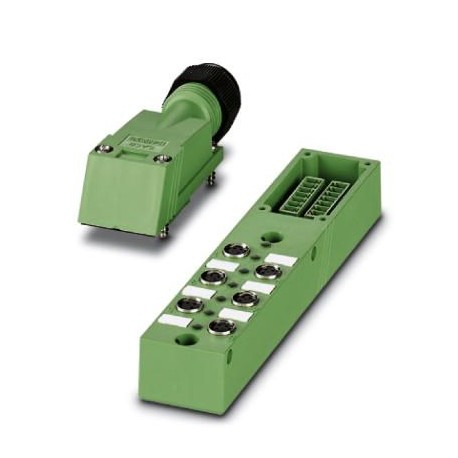

PHOENIX CONTACT SACB- 6/3-L-C-M8 SACB- 6/3-L-C-M8 1503425 PHOENIX CONTACT Sensor/actuator box View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACB- 6/3-L-C-M8 1503425 PHOENIX CONTACT Sensor/actuator box

SACB- 6/3-L-C-M8

1503425

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box Sensor/actuator box, application: Standard, connection type: Female M8 Metal, number of plug-in stations: 6, number of poles: 3, coding: A - standard, occupation of plug-in stations: single, status indication: Yes, pnp; Main cable connection: 180° plug-in screw connection, shielding: No

Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1503425
Packing unit1 pc
Catalog pagePage 267 (C-2-2017)
GTIN4017918976415
Weight per Piece (excluding packing)168.300 g
Custom tariff number85366990
Country of originPL (Poland)

General

Rated voltage24 V DC
Max. operating voltage Umax30 V DC
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot2 A
Total rated current8 A
Number of positions3
Number of slots6
Flammability rating according to UL 94V0
Sensor/actuator connection systemM8 socket
NoteFor details about the PCB connectors used, refer to the technical data for MC 1,5/10-STF-3,5 (1847204)

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-30 °C ... 80 °C

Local diagnostics function

Local diagnosticsSupply voltage Green LED
Status display I/O Yellow LED

Master cable data/connection data

Connection methodPluggable screw connection
Conductor cross section min. (signal)0.14 mm²
Conductor cross section max. (signal)1.5 mm²
Conductor cross section AWG min. (signal)26
Conductor cross section AWG max. (signal)16
Stripping length (signal)7 mm
Conductor cross section min. (energy)0.14 mm²
Conductor cross section max. (energy)1.5 mm²
Conductor cross section AWG min. (energy)26
Conductor cross section AWG max. (energy)16
External cable diameter min.7 mm
External cable diameter max.12 mm
Stripping length60 mm (Master cable)
Tightening torque, cover screw1 Nm
Tightening torque, union nut2.5 Nm
Tightening torque slot sensor/actuator cable0.2 Nm

Insulation material

Housing materialPBT
Material of the moulding massPUR
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA
Material of contact, master cable sideCU alloy
Material of contact surface, master cable sideGold-plated
Material of the contact carrier on the master cable sidePA 6.6 V0
Material of threaded sleeveCu alloy
Material of threaded sleeve surfaceNickel-plated
O-ring materialNBR

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = 1 / 4
2 / 4 (A) = 2 / 4
3 / 4 (A) = 3 / 4
4 / 4 (A) = 4 / 4
5 / 4 (A) = 5 / 4
6 / 4 (A) = 6 / 4
1-6 / 1 (+ 24 V) = UN
1-6 / 3 (0 V) = 0 V

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1

Classifications
