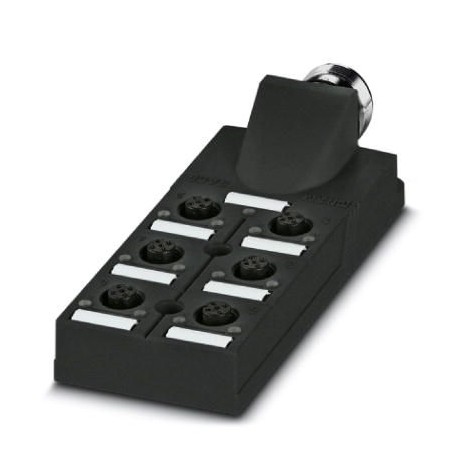

PHOENIX CONTACT SACB-6/12-M23 180 SACB-6/12-M23 180 1692763 PHOENIX CONTACT Sensor/actuator box View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACB-6/12-M23 180 1692763 PHOENIX CONTACT Sensor/actuator box

SACB-6/12-M23 180

1692763

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box Sensor/actuator box, application: Standard, connection type: M12 female connector Plastic, number of plug-in stations: 6, number of poles: 5, coding: A - standard, occupation of plug-in stations: Double, status indication: No, Universal; Main cable connection: M23 180° plug-in connection, shielding: no

Cables > Passive sensor-actuator interface (without cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1692763
Packing unit1 pc
Catalog pagePage 114 (PC-2009)
GTIN4017918177836
Weight per Piece (excluding packing)131.000 g
Custom tariff number85366990
Country of originPL (Poland)

General

Rated voltage120 V
Max. operating voltage Umax135 V
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot4 A
Total rated current12 A
Number of positions5
Number of slots6
Flammability rating according to UL 94V0
Sensor/actuator connection systemM12 socket

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-20 °C ... 75 °C

Master cable data/connection data

Connection methodM23 plug connection
Tightening torque slot sensor/actuator cable0.4 Nm

Insulation material

Housing materialPA
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA
Material of contact, master cable sideCU alloy
Material of contact surface, master cable sideGold-plated
Material of the contact carrier on the master cable sidePA
Material of threaded sleevePA
O-ring materialNBR

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = 15
1 / 2 (B) = 7
2 / 4 (A) = 5
2 / 2 (B) = 4
3 / 4 (A) = 16
3 / 2 (B) = 8
4 / 4 (A) = 3
4 / 2 (B) = 14
5 / 4 (A) = 17
5 / 2 (B) = 9
6 / 4 (A) = 2
6 / 2 (B) = 13
1-6 / 1 (+ 120 V) = 19
1-6 / 3 (0 V) = 6
1-6 / 5 (PE) = 12

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1692763 Sensors (EC003558)
Feature Name Feature Value
Number of sensor-/actuator-slots (EF006939) 6
Number of channels per connector slot (EF006885) 2
Type of branches for sensor-/actuator cables (EF006972) M12
Number of poles sensor/actuator slots (EF007402) 5
Operating voltage (EF003983) 120 V
Max. current carrying capacity per I/O signal (EF004037) 12 A
Max. total current (EF004039) 12 A
Material of contact surface (EF004020) Other
With LED indication (EF005950) No
With potential separation (EF003272) No
Connection for NPN-sensors (EF006817) Yes
Operating temperature (EF002393) -20 °C
Degree of protection (IP) (EF005474) IP65
Explosion safety category for gas (EF003997) Other
Explosion safety category for dust (EF003998) Other
Width (EF000008) 54 mm
Height (EF000040) 34 mm
