View larger
Images are for illustrative purposes only. Please refer to data sheet for details

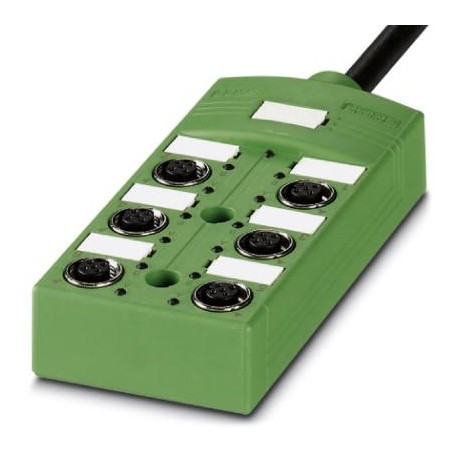

SACB-6/12- 5,0HPUR SCO 1517220 PHOENIX CONTACT Sensor/actuator box
SACB-6/12- 5,0HPUR SCO
1517220
PHOENIX CONTACT
1 Pcs.
Sensor/actuator box
Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1517220 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 270 (C-2-2017) |
| GTIN | 4017918967895 |
| Weight per Piece (excluding packing) | 995.580 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
General
| Rated voltage | 120 V |
|---|---|
| Max. operating voltage Umax | 135 V |
| Current carrying capacity per I/O signal | 2 A |
| Current carrying capacity per slot | 4 A |
| Total rated current | 12 A |
| Number of positions | 5 |
| Number of slots | 6 |
| Flammability rating according to UL 94 | V0 |
| Sensor/actuator connection system | M12-SPEEDCON-socket |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| IP69K | |
| Ambient temperature (operation) | -30 °C ... 90 °C |
| -40 °C ... 90 °C (for fixed installation) | |
| -5 °C ... 80 °C (for flexible installation) |
Master cable connection data
| Connection method | Fixed connection |
|---|---|
| Length of cable | 5 m |
| Tightening torque slot sensor/actuator cable | 0.4 Nm |
| Tightening torque of mounting screw for fixing the housing | 0.5 Nm |
Insulation material
| Housing material | PBT |
|---|---|
| Material of the moulding mass | PUR |
| Contact material | Cu alloy |
| Contact surface material | gold-plated |
| Contact carrier material | PA |
| Material of threaded sleeve | Zinc die-cast |
| Material of threaded sleeve surface | Nickel-plated |
| O-ring material | NBR |
Pin assignment
| Slot/position = Wire color or connection | 1 / 4 (A) = WH |
|---|---|
| 1 / 2 (B) = GY/PK | |
| 2 / 4 (A) = GN | |
| 2 / 2 (B) = RD/BU | |
| 3 / 4 (A) = YE | |
| 3 / 2 (B) = WH/GN | |
| 4 / 4 (A) = GY | |
| 4 / 2 (B) = BN/GN | |
| 5 / 4 (A) = PK | |
| 5 / 2 (B) = WH/YE | |
| 6 / 4 (A) = RD | |
| 6 / 2 (B) = YE/BN | |
| 1-6 / 1 (+ 120 V) = BN | |
| 1-6 / 3 (0 V) = BU | |
| 1-6 / 5 (PE) = GN/YE |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Connection in acc. with standard | CUL |
| Flammability rating according to UL 94 | V0 |
Cable
| Cable abbreviation | Li9Y11Y-HF |
|---|---|
| Conductor cross section | 12x 0.5 mm² (Signal) |
| 3x 0.5 mm² (Power) | |
| AWG signal line | 20 |
| AWG power supply | 17 |
| Conductor structure signal line | 64x 0.10 mm |
| Conductor structure, voltage supply | 128x 0.10 mm |
| Overall twist | Wires twisted in layers |
| External sheath, color | black RAL 9005 |
| External cable diameter D | 10.4 mm ±0,3 mm |
| Number of bending cycles | 2000000 |
| Minimum bending radius, drag chain applications | 10 x D |
| Traversing path | 2 m |
| Traversing rate | 2 m/s |
| Outer sheath, material | PUR |
| Conductor material | Bare Cu litz wires |
| Nominal voltage, cable | 300 V |
| Test voltage, cable | 2000 V |
| Ambient temperature (operation) | -40 °C ... 90 °C (cable, fixed installation) |
| -5 °C ... 80 °C (cable, flexible installation) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
