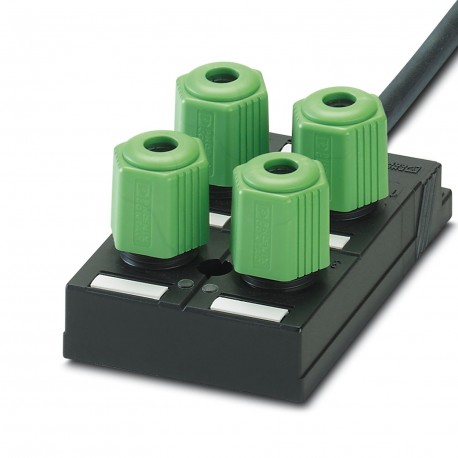

PHOENIX CONTACT SACB-4Q/4P- 5,0PUR SACB-4Q/4P- 5,0PUR 1683662 PHOENIX CONTACT Sensor/actuator box View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACB-4Q/4P- 5,0PUR 1683662 PHOENIX CONTACT Sensor/actuator box

SACB-4Q/4P- 5,0PUR

1683662

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box Sensor/Actuator Box, Application: Standard, Connection Type: QUICKON, 0.34 mm² ... 0.75 mm², number of plug-in stations: 4, number of poles: 4, occupancy of plug-in stations: single, status indication: No, Universal; Main cable connection: Fixed connection 180°, PUR/PVC, cable length: 5 m, shielding: no Distributor box, application: Standard, connection method: QUICKON, 0.34 mm2 ... 0.75 mm2, number of slots: 4, number of positions: 4, slot assignment: single, status display: No, Universal; master cable connection: Fixed connection 180°, PUR/PVC, cable length: 5 m, shielding: no

Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Assembly noteNOTE:Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties.
Note on applicationUnused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties
Product typeDistributor box
ApplicationStandard
Number of positions4
Number of slots4
LEDno
Electrical properties
Max. operating voltage Umax135 V
Nominal voltage UN120 V AC
120 V DC
Rated current, total12 A
Max. current carrying capacity per path4 A
Current carrying capacity per slot4 A
Connection data
Conductor connection
Sensor/actuator connection systemQUICKON
Pin assignment
Slot/position = Wire color or connection1 / 4 (A) = WH
2 / 4 (A) = GN
3 / 4 (A) = YE
4 / 4 (A) = GY
1-4 / 1 (+ 120 V) = BN
1-4 / 3 (0 V) = BU
1-4 / 5 (PE) = GNYE
Signaling
Status display presentNo
Dimensions
Dimensional drawingkivzukhars.jpg
Width60 mm
Height44 mm
Length97 mm
Wrench size, union nut22 mm
Material specifications
Material HousingPA
Material Molding compoundPUR
Flammability rating according to UL 94V0
Contact materialSteel/copper
Contact surface materialSn
Contact carrier materialPA 6.6
Conductor data
Wire insulation materialPVC / PE
Cable/line
Cable length5 m
PUR/PVC black [PUR]
Dimensional drawingthjerydpdz.jpg
Cable weight77.9 kg/km
UL AWM Style20549
Number of positions7
Shieldedno
Cable typePUR/PVC black [PUR]
Conductor structure signal line19x 0.15 mm
AWG signal line22
Conductor cross section4x 0.34 mm² (Signal line)
3x 0.75 mm² (power line)
Wire diameter incl. insulation1.3 mm ±0.1 mm (Signal line)
1.8 mm ±0.1 mm (power line)
External cable diameter6.90 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorblack RAL 9005
Conductor materialBare Cu litz wires
Material wire insulationPVC
Single wire, colorbrown, blue, green/yellow, white, green, yellow, gray
Inner sheath thickness≥ 0.15 mm
Thickness, outer sheath≥ 0.38 mm
Overall twistWires twisted in layers
Nominal voltage, cable300 V
Test voltage2000 V
Minimum bending radius, fixed installation7.5 x D
Minimum bending radius, flexible installation10 x D
Smallest bending radius, fixed installation52 mm
Smallest bending radius, movable installation69 mm
Dynamic load capacity (bending)Max. bending cycles: 1500000, Bending radius: 69 mm, Traversing path: 2 m, Traversing rate: 2 m/s
Flame resistanceDIN EN 50265
Resistance to oilaccording to VDE 0472 Part 803
Other resistanceHighly resistant to acids, alkaline solutions and solvents
Special propertiesSilicone-free
Ambient temperature (operation)-40 °C ... 90 °C (cable, fixed installation)
-5 °C ... 80 °C (Cable, flexible installation)
80 °C (in acc. with UL)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 60 °C
-25 °C ... 50 °C (when the conductor is connected. Specifications of the cable manufacturer must also be observed.)
