View larger
Images are for illustrative purposes only. Please refer to data sheet for details

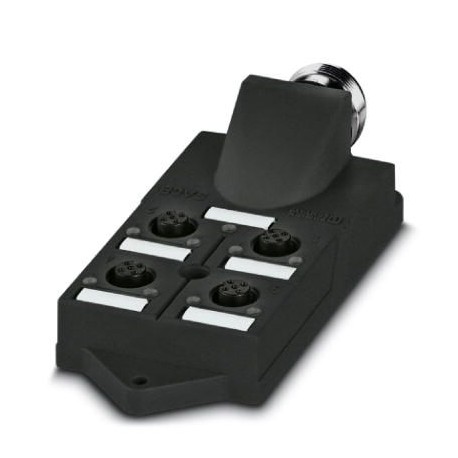

SACB-4/ 4-L-M23 180 1692679 PHOENIX CONTACT Sensor/actuator box
SACB-4/ 4-L-M23 180
1692679
PHOENIX CONTACT
1 Pcs.
Sensor/actuator box
Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1692679 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 114 (PC-2009) |
| GTIN | 4017918177744 |
| Weight per Piece (excluding packing) | 109.200 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Rated voltage | 24 V DC |
|---|---|
| Max. operating voltage Umax | 30 V DC |
| Current carrying capacity per I/O signal | 2 A |
| Current carrying capacity per slot | 4 A |
| Total rated current | 12 A |
| Number of positions | 4 |
| Number of slots | 4 |
| Flammability rating according to UL 94 | V0 |
| Sensor/actuator connection system | M12 socket |
Master cable data/connection data
| Connection method | M23 plug connection |
|---|---|
| Tightening torque slot sensor/actuator cable | 0.4 Nm |
Insulation material
| Housing material | PA |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA |
| Material of contact, master cable side | CU alloy |
| Material of contact surface, master cable side | Gold-plated |
| Material of threaded sleeve | PA |
| O-ring material | NBR |
Pin assignment
| Slot/position = Wire color or connection | 1 / 4 (A) = 1 |
|---|---|
| 2 / 4 (A) = 2 | |
| 3 / 4 (A) = 3 | |
| 4 / 4 (A) = 4 | |
| 1-4 / 1 (+ 24 V) = 11 | |
| 1-4 / 3 (0 V) = 9+10 | |
| 1-4 / 5 (PE) = 12 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
