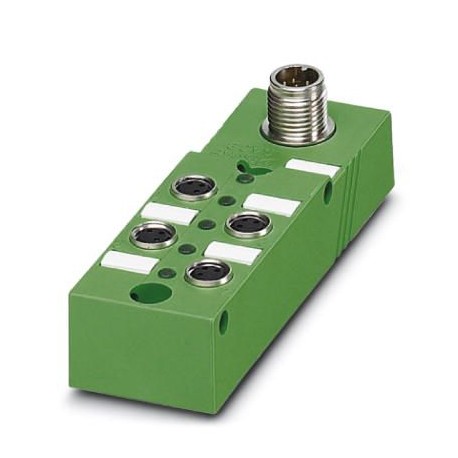

SACB- 4/3-L-M12-M8 1516234 PHOENIX CONTACT Sensor/actuator box

SACB- 4/3-L-M12-M8

1516234

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box Sensor/actuator box, application: Standard, connection type: Female M8 Metal, number of plug-in seats: 4, number of poles: 3, coding: A - standard, occupation of plug-in positions: simple, status indication: Yes, pnp; Main cable connection: M12 90° plug-in connection, shielding: no

Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1516234
Packing unit1 pc
Catalog pagePage 266 (C-2-2017)
GTIN4017918967161
Weight per Piece (excluding packing)91.700 g
Custom tariff number85366990
Country of originPL (Poland)

General

Rated voltage24 V DC
Max. operating voltage Umax30 V DC
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot2 A
Total rated current4 A
Number of positions3
Number of slots4
Flammability rating according to UL 94V0
Sensor/actuator connection systemM8 socket

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-30 °C ... 80 °C

Local diagnostics function

Local diagnosticsSupply voltage per module Green LED
Status display I/O Yellow LED

Master cable data/connection data

Connection methodM12 plug connection
Tightening torque - master cable - plug connection0.4 Nm
Tightening torque slot sensor/actuator cable0.2 Nm

Insulation material

Housing materialPBT
Material of the moulding massPUR
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA
Material of contact, master cable sideCU alloy
Material of contact surface, master cable sideGold-plated
Material of threaded sleeveCu alloy
Material of threaded sleeve surfaceNickel-plated
O-ring materialNBR

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = 1
2 / 4 (A) = 2
3 / 4 (A) = 3
4 / 4 (A) = 4
1-4 / 1 (+ 24 V) = 5
1-4 / 3 (0 V) = 7

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
