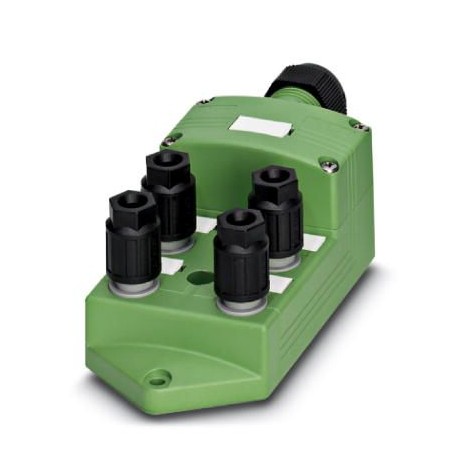

SACB- 4/3-C QO-0,34 1548354 PHOENIX CONTACT Sensor/actuator box

SACB- 4/3-C QO-0,34

1548354

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box Sensor/Actuator Box, Application: Standard, Connection Type: QUICKON, 0.14 mm² ... 0.34 mm², number of plug-in workstations: 4, number of poles: 3, occupation of plug-in workstations: single, status display: No, Universal; Main cable connection: 180° plug-in screw connection, shielding: No

Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1548354
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 272 (C-2-2017)
GTIN4046356142823
Weight per Piece (excluding packing)214.600 g
Custom tariff number85366990
Country of originPL (Poland)

General

Rated voltage48 V
60 V DC
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot4 A
Total rated current10 A
2x 8 A (For electrical isolation)
Number of positions3
Number of slots4
Flammability rating according to UL 94V0
Sensor/actuator connection systemQUICKON

Ambient conditions

Degree of protectionIP65
IP67
IP69K
Ambient temperature (operation)-30 °C ... 80 °C

Master cable data/connection data

Connection methodPluggable screw connection
Conductor cross section min. (signal)0.14 mm²
Conductor cross section max. (signal)1.5 mm²
Conductor cross section AWG min. (signal)26
Conductor cross section AWG max. (signal)16
Stripping length (signal)7 mm
Conductor cross section min. (energy)0.14 mm²
Conductor cross section max. (energy)1.5 mm²
Conductor cross section AWG min. (energy)26
Conductor cross section AWG max. (energy)16
External cable diameter min.7 mm
External cable diameter max.12 mm
Stripping length50 mm (Master cable)
Tightening torque, cover screw0.35 Nm
Tightening torque, union nut2.5 Nm
Tightening torque of mounting screw for fixing the housing0.5 Nm

Conductor data

Structure of individual litz in acc. with VDE 0295 / smallest wire diameterClass 2-6
Wire insulation materialPVC / PE /PP
Wire diameter including insulation0.7 mm ... 1.3 mm
Minimum external conductor diameter3.5 mm
Maximum external conductor diameter6 mm
Tightening torque, union nut2 Nm
Wrench size, union nut13 mm
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.0.34 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.22

Insulation material

Housing materialPBT
Material of the moulding massPUR
Contact materialSteel/copper
Contact surface materialSn
Contact carrier materialPA 6.6
Material of contact, master cable sideCU alloy
Material of contact surface, master cable sideGold-plated
Material of the contact carrier on the master cable sidePA 6.6 V0

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = 1 / 4
2 / 4 (A) = 2 / 4
3 / 4 (A) = 3 / 4
4 / 4 (A) = 4 / 4
1-4 / 1 (+ 48 V) = UN
1-4 / 3 (0 V) = 0 V

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
