PHOENIX CONTACT SACB-10/3-L-M16-M8 SACB-10/3-L-M16-M8 1516218 PHOENIX CONTACT Sensor/actuator box View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACB-10/3-L-M16-M8 1516218 PHOENIX CONTACT Sensor/actuator box

SACB-10/3-L-M16-M8

1516218

PHOENIX CONTACT

1 Pcs.

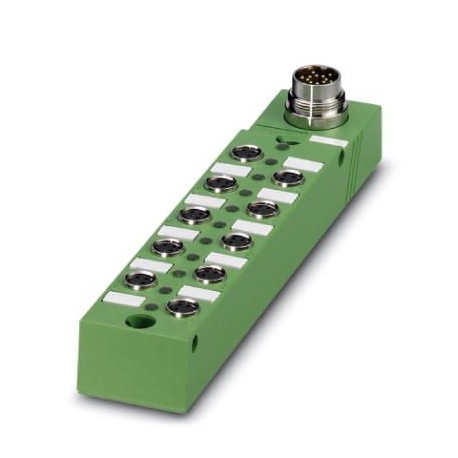

Sensor/actuator box Sensor/actuator box, application: Standard, connection type: Female M8 Metal, number of plug-in stations: 10, number of poles: 3, occupancy of plug-in stations: single, status indication: Yes, pnp; Main cable connection: M16 90° plug-in connection, shielding: no

Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1516218
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 267 (C-2-2017)
GTIN4017918967147
Weight per Piece (excluding packing)164.700 g
Custom tariff number85366990
Country of originPL (Poland)

General

Rated voltage24 V DC
Max. operating voltage Umax30 V DC
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot2 A
Total rated current6 A
Number of positions3
Number of slots10
Flammability rating according to UL 94V0
Sensor/actuator connection systemM8 socket

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-30 °C ... 80 °C

Local diagnostics function

Local diagnosticsSupply voltage per module Green LED
Status display I/O Yellow LED

Master cable data/connection data

Connection methodM16 plug connection
Tightening torque - master cable - plug connection1.5 Nm
Tightening torque slot sensor/actuator cable0.2 Nm

Insulation material

Housing materialPBT
Material of the moulding massPUR
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA
Material of contact, master cable sideCU alloy
Material of threaded sleeveCu alloy
Material of threaded sleeve surfaceNickel-plated
O-ring materialNBR

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = P
2 / 4 (A) = J
3 / 4 (A) = T
4 / 4 (A) = S
5 / 4 (A) = G
6 / 4 (A) = R
7 / 4 (A) = E
8 / 4 (A) = O
9 / 4 (A) = C
10 / 4 (A) = N
1-10 / 1 (+24 V) = A+M
1-10 / 3 (0 V) = L+U

Standards and Regulations

Standard designationM8 connector
Standards/regulationsIEC 61076-2-104
Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
