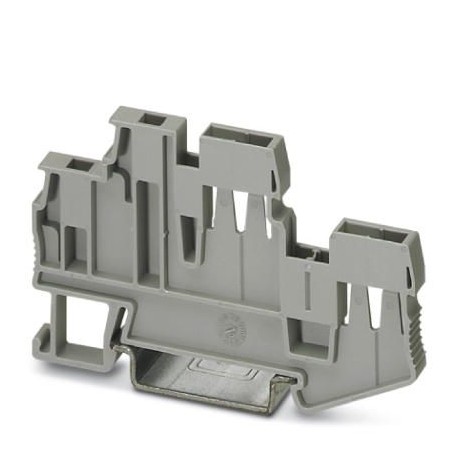

PHOENIX CONTACT STTB 2,5/2P-FS STTB 2,5/2P-FS 3061428 PHOENIX CONTACT Self-locking flange View larger
Images are for illustrative purposes only. Please refer to data sheet for details

STTB 2,5/2P-FS 3061428 PHOENIX CONTACT Self-locking flange

STTB 2,5/2P-FS

3061428

PHOENIX CONTACT

50 Pcs.

Self-locking flange Lace flange, mounting class: NS 35/7.5, NS 35/15, color: gray

Automation > End bracket for terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3061428
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 369 (C-1-2017)
GTIN4046356555067
Weight per Piece (excluding packing)5.830 g
Custom tariff number39269097
Country of originPL (Poland)

General

Number of levels2
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width5.2 mm
End cover width2.2 mm
Length71.5 mm
Height40 mm
Height NS 35/7,547.5 mm
Height NS 35/1555 mm

Standards and Regulations

Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3061428 Terminal blocks (EC001041)
Feature Name Feature Value
Colour (EF000007) Grey
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Inflammability class of insulation material according to UL94 (EF002521) V0
Height (EF000040) 71.5 mm
Depth (EF000049) 40 mm
