View larger
Images are for illustrative purposes only. Please refer to data sheet for details

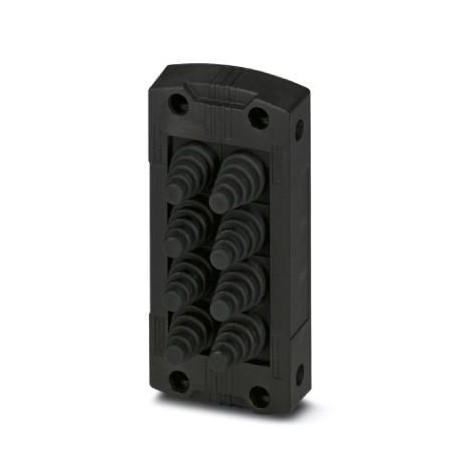

CES-B16-8XSRC-BK 1411073 PHOENIX CONTACT Sealing frame
CES-B16-8XSRC-BK
1411073
PHOENIX CONTACT
1 Pcs.
Sealing frame
Sealing frame with screw closure, size: B16, with 8 conical feedthroughs that have already been assembled for conductor diameters of 2 mm... 11mm
Automation > Accessories/spare parts for low-voltage switch technology
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1411073 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 685 (C-2-2017) |
| GTIN | 4046356921879 |
| Weight per Piece (excluding packing) | 208.000 g |
| Custom tariff number | 39269097 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection | IP54 |
|---|---|
| IP65 | |
| Ambient temperature (operation) | -40 °C ... 120 °C (static) |
General
| Frame type | Sealing frame with coned sleeves |
|---|---|
| Material | PA (Frame) |
| NBR (Coned sleeves) | |
| Color | black |
| Torque | 2 Nm ... 4 Nm (Locking screw) |
| Installation instructions | M4 locking screw with 3 mm hex socket head, torque 2 ... 4 Nm |
| The flat gasket supplied should be inserted between the wall and the sealing frame in the case of wall mounting. IP54: for vertical sealing frame mounting/for horizontal sealing frame mounting (downward cable outlet direction). IP65: vertical mounting/horizontal mounting (downward cable outlet direction) of the sealing frame directly on the housing panel and use of a 3.6 mm wide cable binder (e.g., item 3240744). |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
