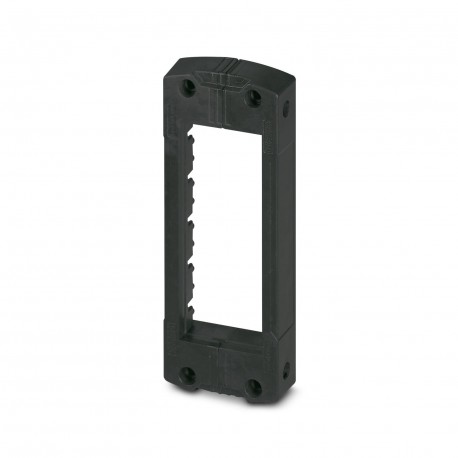

PHOENIX CONTACT CES-B24-SFFS-PLBK CES-B24-SFFS-PLBK 0801658 PHOENIX CONTACT Sealing frame

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

CES-B24-SFFS-PLBK 0801658 PHOENIX CONTACT Sealing frame

Name: CES-B24-SFFS-PLBK 0801658 PHOENIX CONTACT Sealing frame
Brand: PHOENIX CONTACT
SKU: 0801658

Reference: CES-B24-SFFS-PLBK

Code: 0801658

Manufacturer: PHOENIX CONTACT

Units per package: 1 Pcs.

Description:

Sealing frame Sealing frames, with screw lock, construction: B24, Number of cable pass-through joints (small): 10, material: PA (halogen-free), color: black, length: 147 mm, width: 58 mm, height: 20 mm

Categories:
Automation > Gland plate for small distribution boards/switchgear cabinets
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	0801658
Packing unit	1 pc
Catalog page	Page 685 (C-2-2017)
GTIN	4046356674140
Weight per Piece (excluding packing)	173.300 g
Custom tariff number	85472000
Country of origin	PL (Poland)

Dimensions

Length	147 mm
Width	58 mm
Height	20 mm

Ambient conditions

Degree of protection	IP54
	IP65
Ambient temperature (operation)	-40 °C ... 120 °C (static)

General

Frame type	Sealing frame
Material	PA (halogen-free)
Flammability rating according to UL 94	V0
Color	black
Torque	2 Nm ... 4 Nm (Locking screw)
Note	Mounting screws not supplied as standard. The maximum width of the panel cutout must not exceed 51 mm (instead of 35 mm for heavy-duty industrial connectors).
Installation instructions	M4 locking screw with 3 mm Allen screw head, 3 ... 4 Nm torque, 1 large sleeve requires the space of 4 small sleeves, mounting screw: M4 (ISO 4762/DIN 912), 1.8 Nm torque
	The flat gasket supplied should be inserted between the wall and the sealing frame in the case of wall mounting. IP54: for vertical sealing frame mounting/for horizontal sealing frame mounting (downward cable outlet direction). IP65: when using the CES-SRC-BK / CES-LRC-BK cone sleeve, for vertical mounting/horizontal mounting (downward cable outlet direction) of the sealing frame directly on the housing panel, and use of a 3.6 mm wide cable binder (e.g., item 3240744).
