View larger
Images are for illustrative purposes only. Please refer to data sheet for details

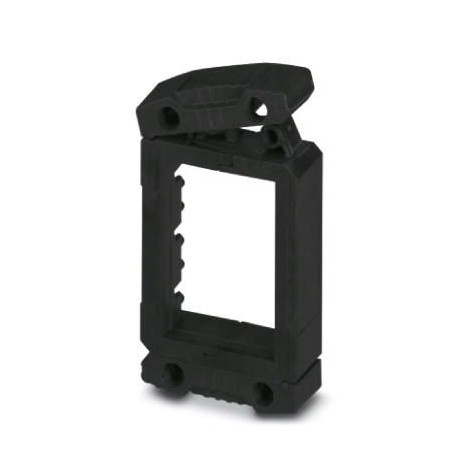

CES-B10-HFFS-PLBK 0801663 PHOENIX CONTACT Sealing frame
CES-B10-HFFS-PLBK
0801663
PHOENIX CONTACT
1 Pcs.
Sealing frame
Sealing frames, with locking flange, construction: B10, Number of cable seals (small): 6, material: PA (halogen-free), color: black, length: 99.2 mm, width: 58 mm, height: 20 mm
Automation > Gland plate for small distribution boards/switchgear cabinets
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0801663 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 684 (C-2-2017) |
| GTIN | 4046356674096 |
| Weight per Piece (excluding packing) | 121.800 g |
| Custom tariff number | 85472000 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection | IP54 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 120 °C (static) |
General
| Frame type | Sealing frame |
|---|---|
| Material | PA (halogen-free) |
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Torque | 1.8 Nm (Mounting screw, M4 (ISO 4762/DIN 912)) |
| Note | Mounting screws not supplied as standard. The maximum width of the panel cutout must not exceed 51 mm (instead of 35 mm for heavy-duty industrial connectors). |
| Installation instructions | One large sleeve requires the space of 4 small sleeves, M4 mounting screws (ISO 4762/DIN 912), torque for mounting screw: 1.8 Nm |
| A video tutorial on how to assemble the product can be found in the Downloads area, in the Video category. |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
