PHOENIX CONTACT SDDC 1,5/ 2-PV-3,5 SDDC 1,5/ 2-PV-3,5 1848642 PHOENIX CONTACT Direct connector View larger

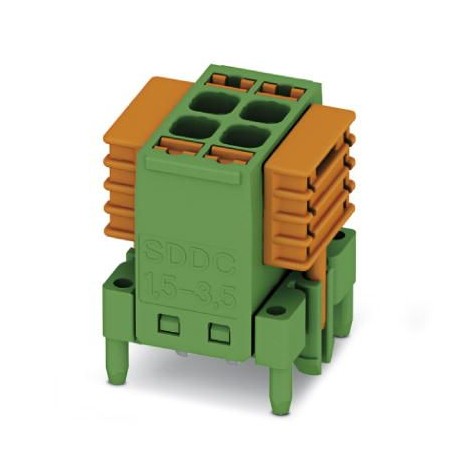

Images are for illustrative purposes only. Please refer to data sheet for details

SDDC 1,5/ 2-PV-3,5 1848642 PHOENIX CONTACT Direct connector

SDDC 1,5/ 2-PV-3,5

1848642

PHOENIX CONTACT

250 Pcs.

Direct connector Direct connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, number of potentials: 4, number of rows: 2, number of poles: 2, number of connections: 4, family of articles: SDDC 1.5/.. -PV, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: SKEDD - Direct connection system, conductor connection direction/printed circuit board: 90 °, pin arrangement: Double linear pin arrangement, plug-in system: SKEDD, lock: Snap lock, fixing type: Snap flange, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1848642
Packing unit250 pc
Minimum order quantity250 pc
GTIN4055626307114
Weight per Piece (excluding packing)2.400 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Length [ l ]13.5 mm
Width [ w ]14.3 mm
Height [ h ]17.6 mm
Pitch3.5 mm
Dimension a3.5 mm

General

Range of articlesSDDC 1,5/..-PV
Number of positions2
Connection methodPush-in spring connection
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)400 V
Nominal current IN8 A
Nominal cross section1.5 mm²
Insulating materialPA
Flammability rating according to UL 94V0
Stripping length8 mm

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.2 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.2 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1848642 Connectors (EC002637)
Feature Name Feature Value
Number of poles (EF001391) 4
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Engage (snap)
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
