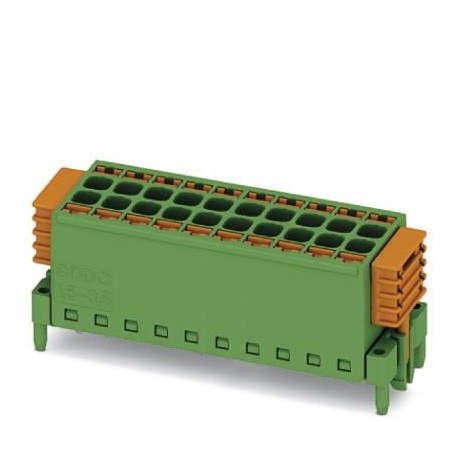

PHOENIX CONTACT SDDC 1,5/11-PV-3,5 SDDC 1,5/11-PV-3,5 1848736 PHOENIX CONTACT Direct connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SDDC 1,5/11-PV-3,5 1848736 PHOENIX CONTACT Direct connector

SDDC 1,5/11-PV-3,5

1848736

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Direct connector

Direct connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, number of potentials: 22, number of rows: 2, number of poles: 11, number of connections: 22, family of articles: SDDC 1.5/.. -PV, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: SKEDD - Direct connection system, conductor connection direction/printed circuit board: 90 °, pin arrangement: Double linear pin arrangement, plug-in system: SKEDD, lock: Snap lock, fixing type: Snap flange, packaging type: boxed
