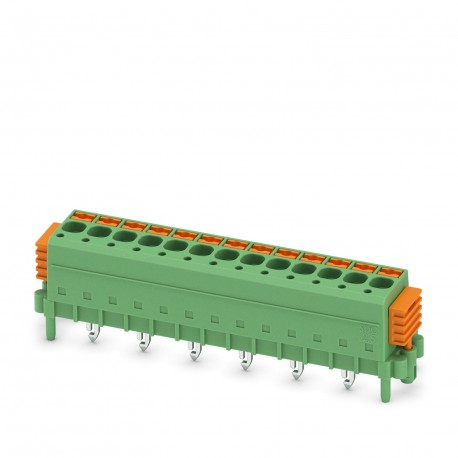

PHOENIX CONTACT SDC 2,5/13-PV-5,0-ZB SDC 2,5/13-PV-5,0-ZB 1864147 PHOENIX CONTACT Direct connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SDC 2,5/13-PV-5,0-ZB 1864147 PHOENIX CONTACT Direct connector

SDC 2,5/13-PV-5,0-ZB

1864147

PHOENIX CONTACT

50 Pcs.

Direct connector Direct connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, number of potentials: 13, number of rows: 1, number of poles: 13, number of connections: 13, family of articles: SDC 2.5/.. -PV, pitch: 5 mm, connection type: Push-in spring connection, mounting: SKEDD - Direct connection system, conductor connection direction/printed circuit board: 90 °, pin arrangement: Zigzag pins W, pin length [P]: 4.7 mm, plug-in system: SKEDD, lock: Snap lock, fixing type: Snap flange, packing type: boxed PCB direct connector, nominal cross-section: 2.5 mm2, colour: green, rated current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Sn, number of potentials: 13, number of rows: 1, number of poles: 13, number of connections: 13, product series: SDC 2.5/.. •PV, pitch: 5 mm, connection type: Push-in spring connection, mounting: SKEDD • Direct connection, conductor/board connection direction: 90 °, pin layout: Zigzag pinning W, pin length [P]: 4.7 mm, plug system: SKEDD, locking: Snap locking, fixing type: Locking flange, packaging type: packed in carton

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1864147
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4055626210544
Weight per Piece (excluding packing)16.200 g
Custom tariff number85366990
Country of originPL (Poland)

Dimensions

Length [ l ]15.3 mm
Width [ w ]73.18 mm
Height [ h ]21.2 mm
Pitch5 mm
Dimension a60 mm

General

Range of articlesSDC 2,5/..-PV
Number of positions13
Connection methodPush-in spring connection
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)200 V
Rated voltage (III/2)320 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Nominal cross section2.5 mm²
Stripping length10 mm

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1864147 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Number of poles (EF001391) 13
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
