View larger
Images are for illustrative purposes only. Please refer to data sheet for details

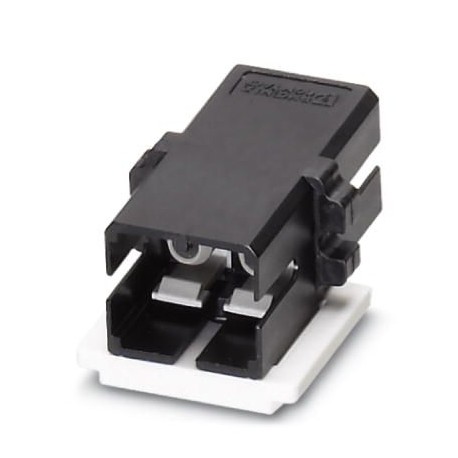

VS-SCRJ-GOF-KU 1654358 PHOENIX CONTACT Fiber optic coupling
VS-SCRJ-GOF-KU
1654358
PHOENIX CONTACT
1 Pcs.
Fiber optic coupling
SC-RJ Coupling Insert, Duplex, for VS-PP-19-1HE-16-F Patchpanel, VS-TO Terminal Outputs... F... and VS-SI-FP-2F data faceplate, can be used for GOF (multimode and singlemode), HCS, and polymer fiber types
Automation > Fibre optic coupler
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1654358 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 384 (C-2-2017) |
| GTIN | 4017918970635 |
| Weight per Piece (excluding packing) | 9.000 g |
| Custom tariff number | 39269097 |
| Country of origin | CH (Switzerland) |
Mechanical characteristics
| Number of positions | 2 |
|---|---|
| Number of slots | 2 |
| Connection profile | SC-RJ, according to DIN EN 50377-6-1 |
| Fiber type | GOF, PCF, POF |
| Ferrule diameter | 2.50 mm |
| Number of fibers | 2 |
| Insertion/withdrawal cycles | ≥ 500 |
| Connection method | Coupling |
| Color | black |
| Degree of protection | IP20 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PBT |
| Ferrule material | Zirconia ceramics |
| Ferrule holder color | white |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440309eCl@ss 8.019170122eCl@ss 9.019170122
| Feature Name | Feature Value |
|---|---|
| Material of ferrule (EF001568) | Ceramics |
