View larger
Images are for illustrative purposes only. Please refer to data sheet for details

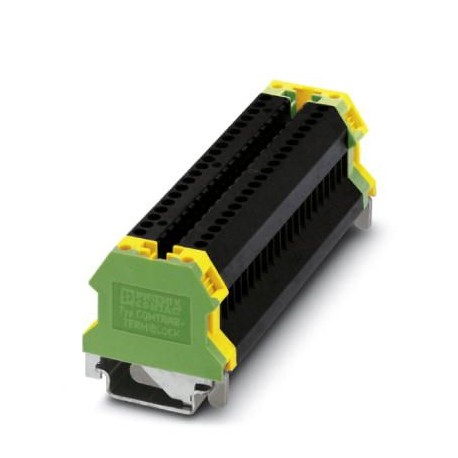

CT-TERMIBLOCK 10 DA 0441711 PHOENIX CONTACT Screw termination block
CT-TERMIBLOCK 10 DA
0441711
PHOENIX CONTACT
1 Pcs.
Screw termination block
Block of screw connection terminals with separation contacts for the reception of CT and CTM plug-in protections. Use in MSR and telecommunication systems. Execution: 10 two-wire circuits
Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0441711 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 169 (C-4-2017) |
| GTIN | 4017918002213 |
| Weight per Piece (excluding packing) | 167.600 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C |
|---|---|
| Altitude | 2000 m |
| Degree of protection | IP20 |
General
| Housing material | PA |
|---|---|
| Flammability rating according to UL 94 | V2 |
| Color | black |
| Standards for cearances and creepage distances | IEC 60664-1 |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Mounting type | DIN rail: 35 mm |
| Type | LSA-PLUS module |
Connection data
| Connection method | Screw terminal blocks |
|---|---|
| Connection method IN | Screw terminal blocks |
| Connection method OUT | Screw terminal blocks |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm |
| Stripping length | 7 mm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Environmental Product Compliance
| REACh SVHC | 4-Nonylphenol, ethoxylated |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
