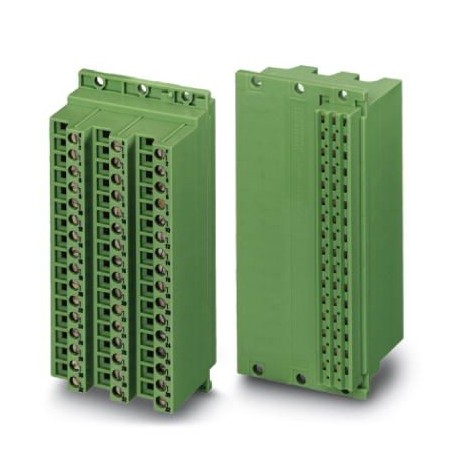

PHOENIX CONTACT FRONT-SFL 2,5/F48 FRONT-SFL 2,5/F48 2285603 PHOENIX CONTACT Socket stripScrew socket, Nominal current: 4 A, Number of position.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FRONT-SFL 2,5/F48 2285603 PHOENIX CONTACT Socket stripScrew socket, Nominal current: 4 A, Number of position..

FRONT-SFL 2,5/F48

2285603

PHOENIX CONTACT

10 Pcs.

Socket stripScrew socket, Nominal current: 4 A, Number of positions: 48, Pitch: 0 mm, Connection method: Screw connection, Color: green, Contact surface: Tin 19" female connector, color: green, contact surface: Tin, number of poles: 48, item family: FRONT-SFL 2.5, pitch: 0 mm, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2285603
Packing unit10 pc
Catalog pagePage 791 (C-1-2013)
GTIN4017918056001
Weight per Piece (excluding packing)177.670 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length45.32 mm
Height35.3 mm
Width95 mm
Pitch0 mm
Hole diameter2.8 mm

General

Range of articlesFRONT-SFL 2,5
Insulating material groupI
Rated surge voltage (III/3)4 kV
Connection in acc. with standardEN-VDE
Nominal current IN4 A
Nominal voltage UN250 V
Nominal cross section2.5 mm²
Insulating materialPA
Flammability rating according to UL 94V2
Stripping length10 mm
Screw threadM2,5
Tightening torque, min0.4 Nm
Tightening torque max0.5 Nm
Number of positions48

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V2

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2285603 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 35.3 mm
Modular spacing connections (EF006827) 0 mm
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type PCB (EF006822) Soldering connection
Diameter connection pin (EF006823) 2.8 mm
Housing colour (EF000136) Green
Type of banding (EF007011) Carton (for SMD)
