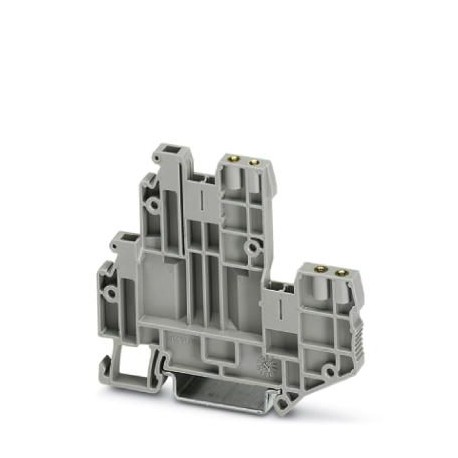

UTTB 2,5/2P-F 3060474 PHOENIX CONTACT Screw flange

UTTB 2,5/2P-F

3060474

PHOENIX CONTACT

50 Pcs.

Screw flange Overhead clamping (screw), for screwing COMBI connectors, with the same contour and pitch as the corresponding COMBI terminal blocks

Automation > End bracket for terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3060474
Packing unit50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 371 (C-1-2017)
GTIN4046356147019
Weight per Piece (excluding packing)8.510 g
Custom tariff number85369010
Country of originDE (Germany)

General

Number of levels2
Number of connections0
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width5.2 mm
End cover width2.2 mm
Length69.9 mm
Height64.4 mm
Height NS 35/7,565 mm
Height NS 35/1572.5 mm

Connection data

Connection methodScrew connection
Screw threadM2,5
Tightening torque, min0.4 Nm
Tightening torque max0.5 Nm

Standards and Regulations

Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 3060474 Terminal blocks (EC001041)
Feature Name Feature Value
Colour (EF000007) Grey
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Inflammability class of insulation material according to UL94 (EF002521) V0
Height (EF000040) 69.9 mm
Depth (EF000049) 64.4 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
