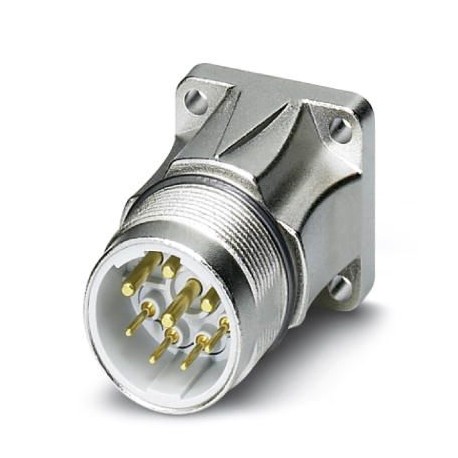

SC-5EP1N8AWV00 1615543 PHOENIX CONTACT Device connector, front mounting
SC-5EP1N8AWV00
1615543
PHOENIX CONTACT
20 Pcs.
Device connector, front mounting
Conect. plug. to be apar. front wall, straight, Screw lock, M23, number of poles: 5+PE, contact type: Pin, Axial O-ring, 4x Ø 3.2, flange size: 26 mm x 26 mm, connection type: Crimped connection
Connectors > Modular connector (industrial connector)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1615543 |
|---|---|
| Packing unit | 20 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356542739 |
| Weight per Piece (excluding packing) | 25.300 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
