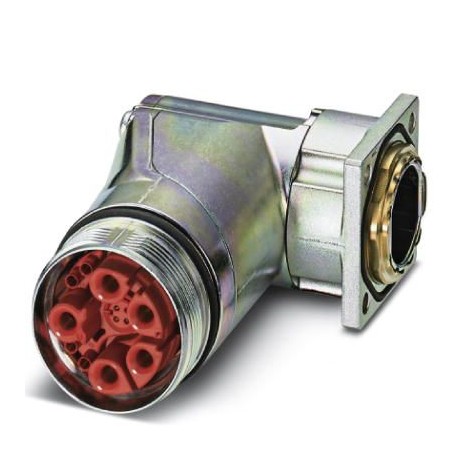

SB-8ESSA8AA700S 1623366 PHOENIX CONTACT Device connector, front mounting
SB-8ESSA8AA700S
1623366
PHOENIX CONTACT
1 Pcs.
Device connector, front mounting
M40, Conect. plug. to be apar. front wall, SB, Swivel angle, shielded: yes, for standard lock and SPEEDCON, Rotation direction: Standard, contact type: Female, Crimped connection, Axial O-ring, 4x Ø4.2
Cables > Circular connector, mounting (without cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1623366 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 129 (C-2-2017) |
| GTIN | 4055626194882 |
| Weight per Piece (excluding packing) | 604.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Data of the insulating body
| Contact connection method | Crimp connection |
|---|---|
| Type of contacts | Socket |
| Application | Hybrid |
| Number of positions | 13 |
| Contact diameter of power contacts | 3.6 mm |
| Litz wire cross section of power contacts min. | 1 mm² |
| Litz wire cross section of power contacts max. | 10 mm² |
| Nominal current per power contact at 25°C | 70 A |
| Nominal voltage, power contact | 630 V AC |
| 850 V DC | |
| Rated surge voltage | 6 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Contact diameter of signal contacts | 1 mm |
| Litz wire cross section of signal contacts min. | 0.06 mm² |
| Litz wire cross section of signal contacts max. | 1.5 mm² |
| Nominal current per signal contact at 25°C | 8 A |
| Nominal voltage, signal contact | 500 V |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Contact diameter, data contacts | 1 mm |
| Litz wire cross section, data contacts, min. | 0.06 mm² |
| Litz wire cross section, data contacts, max. | 1.5 mm² |
| Nominal current per data contact at 25°C | 8 A |
| Nominal voltage of data contact | 50 V |
| Rated surge voltage | 1.5 kV |
Housing data
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
|---|---|
| Type of locking | for standard and SPEEDCON interlock |
| Degree of protection (when plugged in) | IP68/IP69K |
| Thread type | M40 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440102eCl@ss 8.027440102eCl@ss 9.027440102
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Ambient temperature (EF002386) | -40 °C |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
