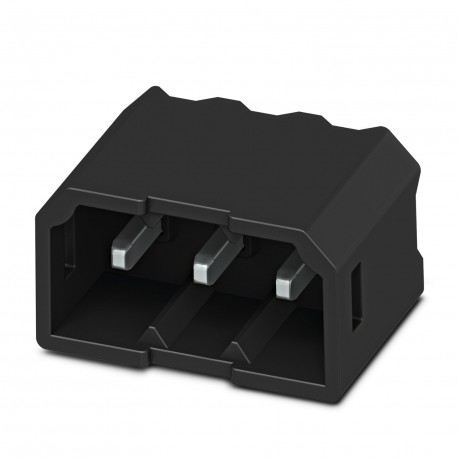

PHOENIX CONTACT SAMPLE PTSM 0,5/ 6-HH-2,5-THR SAMPLE PTSM 0,5/ 6-HH-2,5-THR 1786015 PHOENIX CONTACT Sample set View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAMPLE PTSM 0,5/ 6-HH-2,5-THR 1786015 PHOENIX CONTACT Sample set

SAMPLE PTSM 0,5/ 6-HH-2,5-THR

1786015

PHOENIX CONTACT

5 Pcs.

Sample set Printed circuit board base case, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 6, number of rows: 1, number of poles: 6, number of connections: 6, article family: PTSM 0.5/.. -HH-THR, pitch: 2.5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.1 mm, number of solder pins per potential: 1, plug-in system: COMBICON PTSM, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed PCB base strip, nominal cross-section: 0.5 mm2, color: black, rated current: 6 A, rated voltage (III/2): 160 V, contact surface: Sn, contact type: pin, number of potentials: 6, number of rows: 1, number of poles: 6, number of connectors: 6, article family: PTSM 0.5/.. -HH-THR, Pitch: 2.5 mm, Mounting: THR Soldering / Wave Soldering, Pin Layout: Linear Pinning, Pin Length [P]: 2.1 mm, Number of Solder Pins per Potential: 1, Plug-in System: COMBICON PTSM, Mating Face Orientation: Standard, Latching: None, Mounting Type: None, Packaging Type: Packed in a Box

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1786015
Packing unit5 pc
Minimum order quantity5 pc
GTIN4046356572149
Weight per Piece (excluding packing)1.430 g
Custom tariff number85366930
Country of originIN (India)

Dimensions

Length [ l ]7.5 mm
Width16.7 mm
Pitch2.5 mm
Dimension a12.5 mm
Width [ w ]16.7 mm
Height [ h ]7.1 mm
Height5 mm
Length of the solder pin2.1 mm
Pin dimensions0.6 x 0.6 mm
Pin spacing2.50 mm
Length7.5 mm

General

Range of articlesPTSM 0,5/..-HH-THR
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)50 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Maximum load current6 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions6

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1786015 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 6
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 2.5 mm
Modular spacing connections (EF006827) 2.5 mm
Rated current In (EF008250) 6 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.1 mm
Length pin (EF006825) 2.1 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
