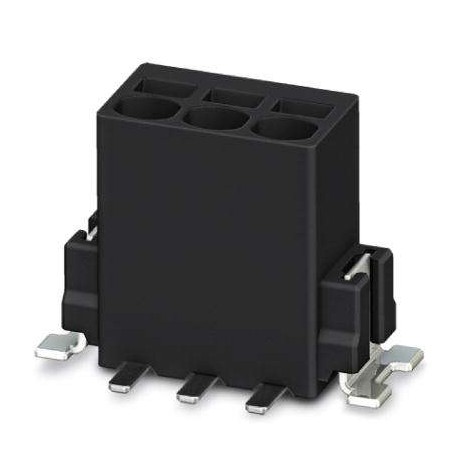

PHOENIX CONTACT SAMPLE PTSM 0,5/ 5-2,5-V-SMD SAMPLE PTSM 0,5/ 5-2,5-V-SMD 1701087 PHOENIX CONTACT Sample set View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAMPLE PTSM 0,5/ 5-2,5-V-SMD 1701087 PHOENIX CONTACT Sample set

SAMPLE PTSM 0,5/ 5-2,5-V-SMD

1701087

PHOENIX CONTACT

5 Pcs.

Sample set Terminal block for printed circuit board, nominal current: 6 A, nominal voltage (III/2): 160 V, nominal section: 0.5 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, article family: PTSM 0.5/.. -V-SMD, pitch: 2.5 mm, connection type: Push-in spring connection, mounting: SMD soldering, conductor connection direction/printed circuit board: 90 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 2 mm, number of solder pins per potential: 1, packaging type: boxed. SAMPLE set with 5 items on strap. For use in a welding process, use the item without the SAMPLE identification

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1701087
Packing unit5 pc
Minimum order quantity5 pc
GTIN4046356515078
Weight per Piece (excluding packing)2.040 g
Custom tariff number85369010
Country of originIN (India)

Item properties

Brief article descriptionPCB terminal block
Range of articlesPTSM 0,5/..-V-SMD
Pitch2.5 mm
Number of positions5
Connection methodPush-in spring connection
Mounting typeSMD soldering
Pin layoutLinear pad geometry
Number of levels1

Electrical parameters

Rated current6 A
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV

Connection capacity

Conductor cross section solid0.14 mm² ... 0.5 mm²
Conductor cross section flexible0.2 mm² ... 0.5 mm² (up to 0.75 mm² supported, at a rated insulation voltage of 32 V at III/2)
Conductor cross section AWG / kcmil26 ... 20
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 0.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 0.34 mm²
Stripping length6 mm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Insulating materialLCP
Insulating material groupIIIa
CTI according to IEC 60112175
Flammability rating according to UL 94V0

Dimensions for the product

Dimensional drawing
Length [ l ]7 mm
Width [ w ]17.6 mm
Height [ h ]9 mm
Pitch2.5 mm
Height (without solder pin)9 mm
Solder pin [P]2 mm
Pin spacing2.5 mm
Dimension a10 mm

Dimensions for PCB design

Pin spacing2.5 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package5
Denomination packing unitsPcs.

General product information

Type of noteNote on application
NotePick and place pads may protrude beyond the components. The PCB layout must ensure that collisions are avoided when components are assembled.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C

Termination and connection method

Connection testIEC 60998-2-2:2002-12
Test resultTest passed
Test for conductor damage and slackeningIEC 60998-2-2:2002-12
Test passed

Pull-out test

Pull-out testIEC 60998-2-2:2002-12
Test passed
Conductor cross section / conductor type / tensile force0.14 mm² / solid / > 7 N
0.14 mm² / flexible / > 7 N
0.2 mm² / solid / > 10 N
0.5 mm² / solid / > 30 N
0.75 mm² / flexible / > 35 N

Electrical tests

Rated current6 A
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV

Air clearances and creepage distances

Insulating material groupIIIa
Voltage32 V
Rated insulation voltage (III/3)32 V
Rated insulation voltage (III/2)160 V
Rated insulation voltage (II/2)160 V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV

Vibration test

Resistance to ageing, to humidity conditions, to ingress of solid objects and to harmful ingress of waterTest passed IEC 60998-1:2002-12 168 h/100°C 48 h/30 °C/92 %
Test resultTest passed
Test specificationIEC 60998-1:2002-12
Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %

Resistance to ageing, humidity and penetration of solids

Test resultTest passed
Test specificationIEC 60998-1:2002-12
Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1701087 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 9 mm
Number of electrical connections (EF008252) 5
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 2.5 mm
Rated current In (EF008250) 6 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Length pin (EF006825) 2 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Flange
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
