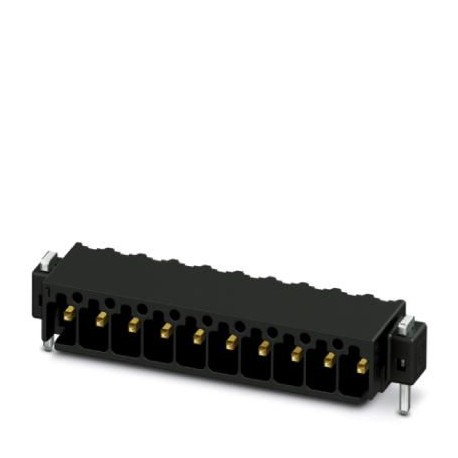

PHOENIX CONTACT SAMPLE MC 0,5/ 4-G-2,54 SMD SAMPLE MC 0,5/ 4-G-2,54 SMD 1706630 PHOENIX CONTACT Sample set View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAMPLE MC 0,5/ 4-G-2,54 SMD 1706630 PHOENIX CONTACT Sample set

SAMPLE MC 0,5/ 4-G-2,54 SMD

1706630

PHOENIX CONTACT

5 Pcs.

Sample set Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Male, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, family of articles: MC 0.5/.. -G-SMD, pitch: 2.54 mm, mounting: SMD soldering, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON FMC 0.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1706630
Packing unit5 pc
Minimum order quantity5 pc
NoteMade to Order (non-returnable)
GTIN4046356869690
Weight per Piece (excluding packing)1.200 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]7.1 mm
Width14.74 mm
Pitch2.54 mm
Dimension a7.62 mm
Width [ w ]14.74 mm
Height [ h ]4.85 mm
Height4.85 mm
Length of the solder pin2 mm
Pin dimensions0.64 x 0.64 mm
Length7.1 mm

General

Range of articlesMC 0,5/..-G-SMD
Insulating material groupIIIa
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)32 V
Rated voltage (III/2)160 V
Rated voltage (II/2)160 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Insulating materialLCP
Flammability rating according to UL 94V0
Colorblack
Number of positions4

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
