PHOENIX CONTACT SACCBP-M12FS-8CON-M16/0,43-94B SACCBP-M12FS-8CON-M16/0,43-94B 1410366 PHOENIX CONTACT Bus system flush-type socket, Ethernet, 8-pos., M12, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACCBP-M12FS-8CON-M16/0,43-94B 1410366 PHOENIX CONTACT Bus system flush-type socket, Ethernet, 8-pos., M12, ..

SACCBP-M12FS-8CON-M16/0,43-94B

1410366

PHOENIX CONTACT

50 Pcs.

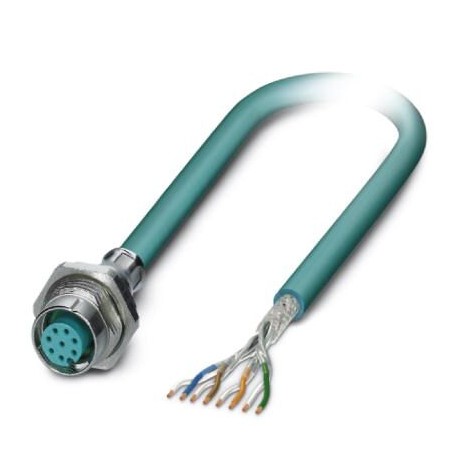

Bus system flush-type socket, Ethernet, 8-pos., M12, shielded, rear/screw mounting with M16 thread, with 1 m bus cable, 4 x 2 x 0.26 mm² Built-in mounting female for bus system, Ethernet, 8-pole, M12, shielded, rear wall mount/screwed mounting with M16 thread, with 1 m bus cable, 4 x 2 x 0.26 mm²

Connectors > Sensor-actuator connector chassis
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1410366
Packing unit1
GTIN4046356896658
Custom tariff number85444290

Drawings

Dimensional drawing

Dimensional drawing
M12 flush-type connector

Dimensional drawing

Dimensional drawing
Housing cutout for M16 fastening thread, mounting panel with feed-through hole (alternatively with surface as protection against rotation)

Circuit diagram

Circuit diagram
Contact assignment of the M12 plug and the M12 socket

Schematic diagram

Schematic diagram
Pin assignment M12 socket, 8-pos., A-coded, view female side

Cable cross section

Cable cross section
Ethernet, flexible, CAT5 [94B]
