View larger
Images are for illustrative purposes only. Please refer to data sheet for details

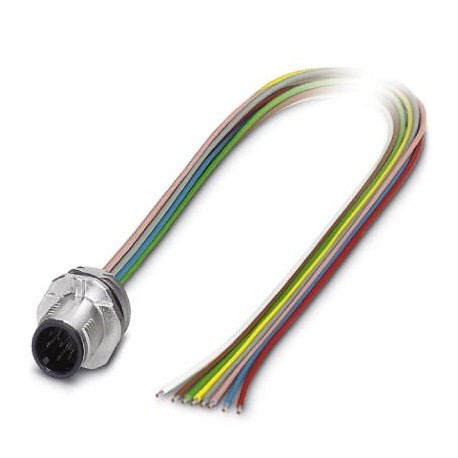

SACC-E-MS-8CON-M16/1,5 SCO 1070948 PHOENIX CONTACT Flush-type connector SACC-E-MS-8CON-M16/1,5 SCO 1070948
SACC-E-MS-8CON-M16/1,5 SCO
1070948
PHOENIX CONTACT
50 Pcs.
Flush-type connector - SACC-E-MS-8CON-M16/1,5 SCO - 1070948
Conect. plug. to be apar. front wall, Universal, 8-pole, Male connector, straight, M12-SPEEDCON, coding: A, free cable end, Front mounting, M16 x 1.5, Single stranded wires, cable length: 1.5 m, 0.25 mm², TPE braided wire, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1238263
Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Sensor/Actuator flush-type plug, 8-pos., M12-SPEEDCON, A-coded, front/screw mounting with M16 thread, with 0.5 m TPE litz wire, 8 x 0.25 mm²
Key Commercial Data
| Orderkey | 1070948 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626751511 |
| Custom tariff number | 85444290 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 8.0 | 27440103 |
|---|---|
| eCl@ss 9.0 | 27440102 |
ETIM
| ETIM 5.0 | EC002061 |
|---|
| Feature Name | Feature Value |
|---|---|
| Cable length (EF000536) | 1.5 mm |
| Type of plug-in contact, outer side (EF005528) | None |
| Mounting method (EF000003) | Front mounting |
| Housing material (EF001596) | Other |
| Material core insulation (EF000061) | Other |
| Material of contact surface (EF004020) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 85 °C |
| Operating temperature (EF002393) | -25 °C |
| Rated voltage (EF000228) | 30 V |
| With shield connection (EF002535) | No |
| Screw-in thread (EF012303) | M12 |
| Core cross section (EF000018) | 0.25 mm² |
| Min. number of insertion cycles (EF012212) | 100 |
| Degree of protection (IP), mounted (EF007466) | IP67 |
