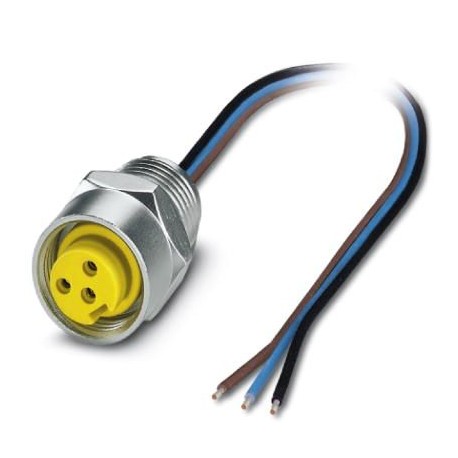

SACC-E-MINF-3CON-NPT12-547/1,0 1420948 PHOENIX CONTACT Flush-type connector
SACC-E-MINF-3CON-NPT12-547/1,0
1420948
PHOENIX CONTACT
10 Pcs.
Flush-type connector
Plug-in Mounting Connector, 3-Pole, Connecting Female, Straight, 7/8"-16UNF, to Free Cable End, Front Wall Mounting, with 1/2"-14 NPT Installation Thread, Single Stranded Wires, Cable Length: 1 m, 0.75 mm², PVC Conductor
Cables > Circular connector, mounting (with cable)
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1420948 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626403557 |
| Weight per Piece (excluding packing) | 74.100 g |
| Custom tariff number | 85366990 |
| Country of origin | MX (Mexico) |
General
| Rated current at 40°C | 13 A |
|---|---|
| Rated voltage | 600 V AC |
| 600 V DC | |
| Number of positions | 3 |
| Insulation resistance | ≥ 100 MΩ |
| Standards/regulations | 7/8-inch connector UL 2238 Suitable for use in Class I, Division 2 Groups A, B, C, D hazardous locations according to ISA standard 12.12.01-2015, section 8.2 and 8.8.3 |
| Status display | No |
| Overvoltage category | |
| Degree of pollution | 3 |
| Connection method | Individual wires |
| Insertion/withdrawal cycles | > 500 |
| Torque | 10 lbf-in. |
| 1.12 Nm | |
| Mounting type | Front mounting, with 1/2 inch-14 NPT mounting thread |
Material
| Flammability rating according to UL 94 | V-0 |
|---|---|
| Contact material | Copper alloy |
| Contact surface material | Au |
| Contact carrier material | PVC |
| Material, knurls | Anodized aluminum |
Cable
| Cable type | PVC litz wire |
|---|---|
| Conductor cross section | 0.75 mm² |
| AWG signal line | 18 |
| Conductor structure signal line | 16 x AWG 30 |
| Core diameter including insulation | 1.78 mm |
| Thickness, insulation | Core insulation |
| Wire colors | Black 1, brown 2, blue 3 |
| Material conductor insulation | PVC |
| Standards/specifications | 7/8-inch connector UL 2238 Suitable for use in Class I, Division 2 Groups A, B, C, D hazardous locations according to ISA standard 12.12.01-2015, section 8.2 and 8.8.3 |
Standards and Regulations
| Standard designation | 7/8-inch connector |
|---|---|
| Standards/regulations | UL 2238 |
| Flammability rating according to UL 94 | V-0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140815eCl@ss 4.127140815eCl@ss 5.027143423eCl@ss 5.127143423eCl@ss 6.027143423eCl@ss 7.027449001eCl@ss 9.027440103
| Feature Name | Feature Value |
|---|---|
| Type of plug-in contact, outer side (EF005528) | Female (bus) |
| Mounting method (EF000003) | Other |
| Screw-in thread (EF012303) | 7/8 inch |
| With shield connection (EF002535) | No |
| Number of poles (EF001391) | 3 |
| Number of control contacts (EF012217) | 3 |
| With PE-connection (EF005600) | No |
| Coating housing (EF001601) | Other |
| Material of contact surface (EF004020) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | Other |
| Min. number of insertion cycles (EF012212) | 500 |
| Degree of protection (IP), mounted (EF007466) | IP68 |
| Ambient temperature (EF002386) | 80 °C |
| Operating temperature (EF002393) | -20 °C |
| Rated current In (EF008250) | 13 A |
| With thread (EF003723) | Yes |
