View larger
Images are for illustrative purposes only. Please refer to data sheet for details

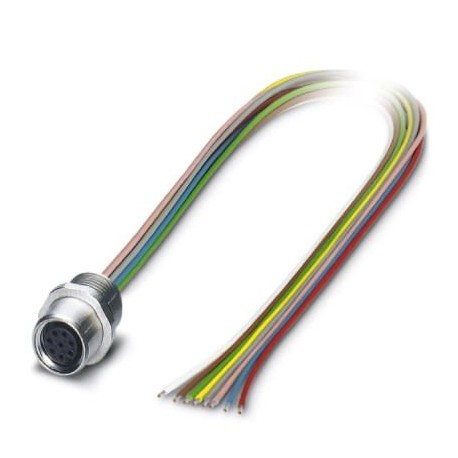

SACC-E-M8FS-8CON-M10/3,0 1056232 PHOENIX CONTACT Flush-type connector, 8-position, Socket, straight, M8, Fro..
SACC-E-M8FS-8CON-M10/3,0
1056232
PHOENIX CONTACT
100 Pcs.
Flush-type connector, 8-position, Socket, straight, M8, Front mounting, M10, Individual wires, cable length: 3 m, 0.14 mm², PVC litz wire
Conect. plug. to be apar. front wall, 8-pole, Connecting female, straight, M8, Front wall mounting, M10, Single stranded wires, cable length: 3 m, 0.14 mm², PVC conductor
Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Back to top
Back to top
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 25; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 8 |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 1.5 A |
| Ambient temperature (EF002386) | -25 °C |
| Rated voltage (EF000228) | 30 V |
| Over voltage category (EF006785) | II |
| Pollution degree (EF006786) | 3 |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
