View larger
Images are for illustrative purposes only. Please refer to data sheet for details

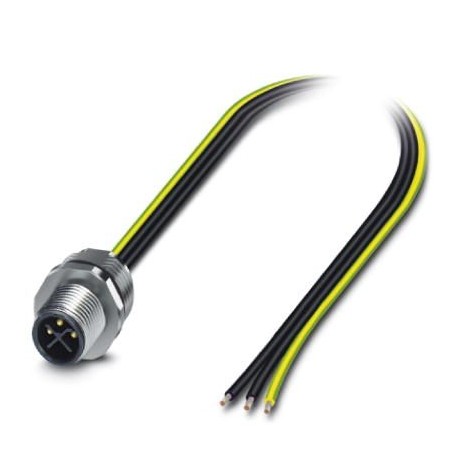

SACC-E-M12MSS-3P-M16/1,5 PE 1068167 PHOENIX CONTACT Flush-type connector
SACC-E-M12MSS-3P-M16/1,5 PE
1068167
PHOENIX CONTACT
50 Pcs.
Flush-type connector
Conect. plug. to be apar. front wall, Power, 3-pole, Male connector, M12, coding: S, Front mounting, M16 x 1.5, Single stranded wires, PP thread, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1238249
Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1068167 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626740508 |
| Weight per Piece (excluding packing) | 89.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Cable length (EF000536) | 1.5 mm |
| Mounting method (EF000003) | Front mounting |
| Housing material (EF001596) | Other |
| Material core insulation (EF000061) | Other |
| Material of contact surface (EF004020) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 85 °C |
| Operating temperature (EF002393) | -25 °C |
| Rated voltage (EF000228) | 60 V |
| With shield connection (EF002535) | No |
| Screw-in thread (EF012303) | M12 |
| Core cross section (EF000018) | 1.31 mm² |
| Min. number of insertion cycles (EF012212) | 100 |
| Degree of protection (IP), mounted (EF007466) | Other |
