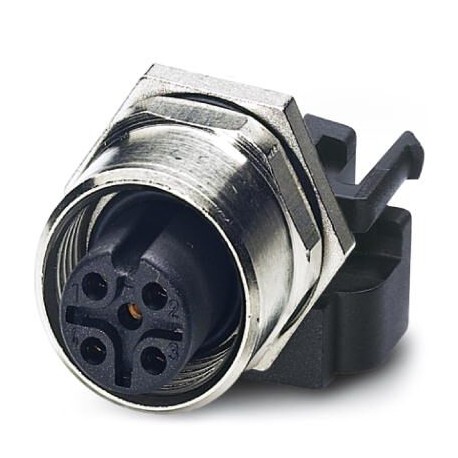

SACC-DSIV-M12FS-5CON-L180 SH 1421685 PHOENIX CONTACT Sensor/actuator flush-type socket, 5-pos., M12, A-coded..

SACC-DSIV-M12FS-5CON-L180 SH

1421685

PHOENIX CONTACT

100 Pcs.

Sensor/actuator flush-type socket, 5-pos., M12, A-coded, rear/screw mounting with M12 thread, with polarity protection, with straight solder connection Built-in sensor/actuator mounting female, 5-pole, M12, A-coded, rear wall mount/bolted mount, with M12 thread, torsion-protected, with straight weld connection

Connectors > Circular connector, mounting (PCB)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1421685
Packing unit1
GTIN4055626277530
Custom tariff number85366990

Drawings

Drilling diagram

Drilling diagram
M12 flush-type connector

Dimensional drawing

Dimensional drawing
M12 flush-type connector

Dimensional drawing

Dimensional drawing
Mounting cutout

Schematic diagram

Schematic diagram
Pin assignment M12 socket, 5-pos., A-coded, socket side view
