SACC-DSI-M12MS-5CON-M16/0,5 1409292 PHOENIX CONTACT Sensor/actuator flush-type connector, 5-pos., M12, A-cod..

SACC-DSI-M12MS-5CON-M16/0,5

1409292

PHOENIX CONTACT

50 Pcs.

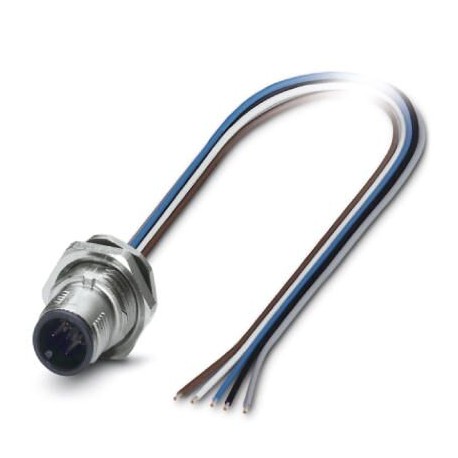

Sensor/actuator flush-type connector, 5-pos., M12, A-coded, rear panel/screw mounting with M16 thread, with 0.5 m TPE litz wire, 5x 0.34 mm² Conect. plug. to be apar. wall poster., Universal, 5-pole, Male connector, straight, M12, coding: A, free cable end, Rear mounting, M16 x 1.5, Single stranded wires, cable length: 0.5 m, 0.34 mm², TPE braided wire, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1238814

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1409292
Packing unit1
GTIN4046356900775
Custom tariff number85444290

Drawings

Dimensional drawing

Dimensional drawing
M12 flush-type plug

Dimensional drawing

Dimensional drawing
Housing cutout for M16 fastening thread, mounting panel with thread

Dimensional drawing

Dimensional drawing
Housing cutout for M16 fastening thread, mounting panel with feed-through hole (alternatively with area as anti-rotation protection for panel thicknesses > 2 mm up to max. 4.5 mm)

Circuit diagram

Circuit diagram
Contact assignment of the M12 plug

Schematic diagram

Schematic diagram
Pin assignment M12 male connector, 5-pos., A-coded, male side
