View larger
Images are for illustrative purposes only. Please refer to data sheet for details

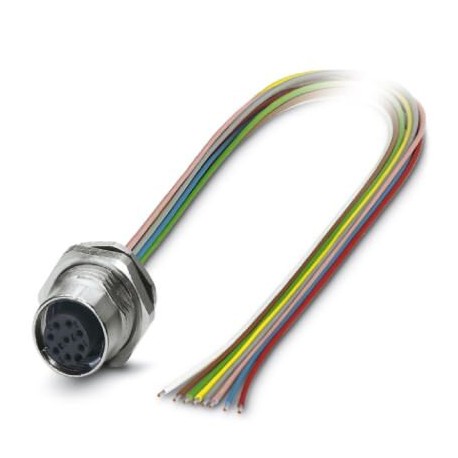

SACC-DSI-M12FS-8CON-M16/0,5 1409291 PHOENIX CONTACT Sensor/actuator flush-type socket, 8-pos., M12 SPEEDCON,..
SACC-DSI-M12FS-8CON-M16/0,5
1409291
PHOENIX CONTACT
50 Pcs.
Sensor/actuator flush-type socket, 8-pos., M12 SPEEDCON, rear/screw mounting with M16 thread, with 0.5 m TPE litz wire, 8 x 0.25 mm²
Conect. plug. to be apar. Wall poster., Universal, 8-pole, Female connection, M12, A coded, Rear mounting, M16 x 1.5, Single stranded wires, cable length: 0.5 m, 0.25 mm², TPE braided wire, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) 1238813
Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27440102 |
|---|---|
| eCl@ss 5.1 | 27061804 |
| eCl@ss 6.0 | 27061801 |
| eCl@ss 8.0 | 27440103 |
| eCl@ss 9.0 | 27440102 |
UNSPSC
| UNSPSC 13.2 | 39121413 |
|---|---|
| UNSPSC 18.0 | 39121413 |
| UNSPSC 19.0 | 39121413 |
| UNSPSC 20.0 | 39121413 |
| UNSPSC 21.0 | 39121413 |
| Feature Name | Feature Value |
|---|---|
| Cable length (EF000536) | 0.5 mm |
| Type of plug-in contact, outer side (EF005528) | None |
| Mounting method (EF000003) | Back wall mounting |
| Housing material (EF001596) | Other |
| Material core insulation (EF000061) | Other |
| Material of contact surface (EF004020) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 85 °C |
| Operating temperature (EF002393) | -25 °C |
| Rated voltage (EF000228) | 30 V |
| With shield connection (EF002535) | No |
| Screw-in thread (EF012303) | M12 |
| Core cross section (EF000018) | 0.25 mm² |
| Min. number of insertion cycles (EF012212) | 100 |
| Degree of protection (IP), mounted (EF007466) | Other |
