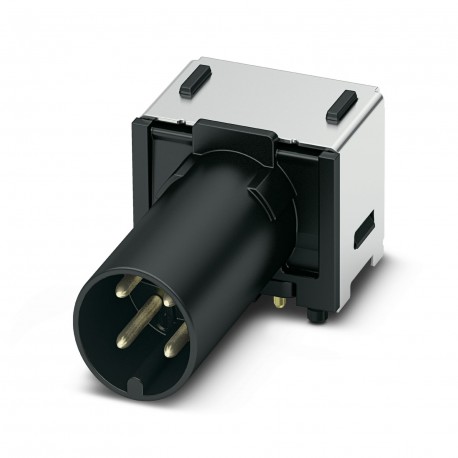

SACC-CI-M12MSR-4CON-L90 THR R 1028588 PHOENIX CONTACT Flush-type connector, 4-position, Plug, angled, A-code..
SACC-CI-M12MSR-4CON-L90 THR R
1028588
PHOENIX CONTACT
120 Pcs.
Flush-type connector, 4-position, Plug, angled, A-coded, PCB mounting, Solder pins
Contact Holder, 4-Pole, Male Connector, Elbowed, Coding: A, Printed Circuit Board Mounting, THR Solder Connection
Connectors > Contact insert for circular connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Ambient conditions
| Ambient temperature (operation) | -25 °C ... 105 °C (Plug / socket) |
|---|---|
| -40 °C ... 105 °C (without mechanical actuation) | |
| Degree of protection | IP67 |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
|---|---|
| Not compatible with SPEEDCON housings. | |
| Rated current at 40°C | 4 A |
| Rated voltage | 250 V |
| Rated surge voltage | 2.5 kV |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A-coded |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Solder pins |
| Insertion/withdrawal cycles | > 100 |
| Torque | 3 Nm ... 4 Nm (Installation-side) |
| Mounting type | PCB mounting The pin assignment is rotated 180° to comply with the standard. |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
Standards and Regulations
| Standards/specifications | M12 connector IEC 61076-2-101 |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
