PHOENIX CONTACT SACB-SH-8 PARA VA MOUNT P-PROT SACB-SH-8 PARA VA MOUNT P-PROT 1407295 PHOENIX CONTACT Sensor/actuator box, connection method: M12 socket St.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACB-SH-8 PARA VA MOUNT P-PROT 1407295 PHOENIX CONTACT Sensor/actuator box, connection method: M12 socket St..

SACB-SH-8 PARA VA MOUNT P-PROT

1407295

PHOENIX CONTACT

1 Pcs.

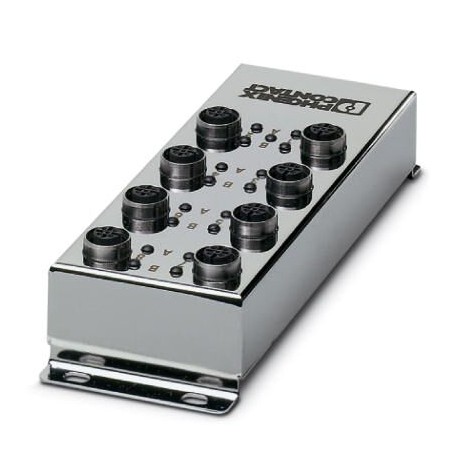

Sensor/actuator box, connection method: M12 socket Stainless steel, number of slots: 8, number of positions: 5, coding: A - standard, slot assignment: Parallel, status display: No, Universal, shielding: yes Distribution box, connection type: M12 female connector Stainless steel, number of plug-in stations: 8, number of poles: 5, coding: A, occupation of plug-in stations: parallel, status indication: No, Universal, shielding: yes

Cables > Passive sensor-actuator interface (without cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1407295
Packing unit1 pc
Minimum order quantity100 pc
GTIN4046356772273
Weight per Piece (excluding packing)0.000 g
Custom tariff number85369010
Country of originDE (Germany)

Drawings

Dimensional drawing

Dimensional drawing

Circuit diagram

Circuit diagram

Schematic diagram

Schematic diagram
M12 slot, socket, 5-pos.

Back to top

General

Rated voltage48 V AC
60 V DC
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot4 A
Total rated current4 A
Number of positions5
Number of slots8
Flammability rating according to UL 94V0
Sensor/actuator connection systemM12 socket
NoteNOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties.
Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Back to top

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-30 °C ... 80 °C
Back to top

Master cable connection data

Tightening torque slot sensor/actuator cable0.4 Nm
Back to top

Insulation material

Housing materialStainless steel 1.4404
Material of the moulding massPUR
Contact materialCuSn6
Contact surface materialgold-plated
Contact carrier materialPBT
Material of threaded sleeveStainless steel 1.4404
O-ring materialFKM
Back to top

Standards and Regulations

Standards/specificationsM12 connector IEC 61076-2-101
Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027250313
eCl@ss 4.127250313
eCl@ss 5.027250313
eCl@ss 5.127061801
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027440108
Back to top

ETIM

ETIM 3.0EC001856
ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC002585
ETIM 7.0EC002585
Back to top

UNSPSC

UNSPSC 6.0131261501
UNSPSC 7.090131261501
UNSPSC 1131261501
UNSPSC 12.0131261501
UNSPSC 13.231251501
UNSPSC 19.031251501
UNSPSC 20.031251501
UNSPSC 21.031251501
Back to top

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
