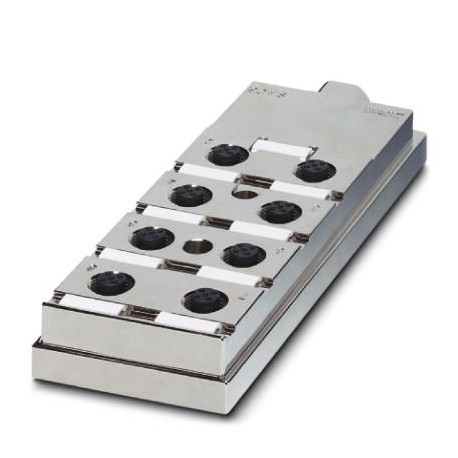

SACB-6-SH PARA 1511792 PHOENIX CONTACT Sensor/actuator box
SACB-6-SH PARA
1511792
PHOENIX CONTACT
1 Pcs.
Sensor/actuator box
Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1511792 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 25 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918908133 |
| Weight per Piece (excluding packing) | 328.700 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Rated voltage | 48 V |
|---|---|
| 60 V DC | |
| Current carrying capacity per I/O signal | 3 A |
| Current carrying capacity per slot | 3 A |
| Total rated current | 3 A |
| Number of positions | 5 |
| Number of slots | 6 |
| Flammability rating according to UL 94 | V0 |
| Sensor/actuator connection system | M12 socket |
Insulation material
| Housing material | Aluminum |
|---|---|
| Housing surface material | Nickel-plated |
| Material of the moulding mass | PUR |
| Contact material | Cu alloy |
| Contact surface material | gold-plated |
| Contact carrier material | PA |
| O-ring material | NBR |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Flammability rating according to UL 94 | V0 |
