View larger
Images are for illustrative purposes only. Please refer to data sheet for details

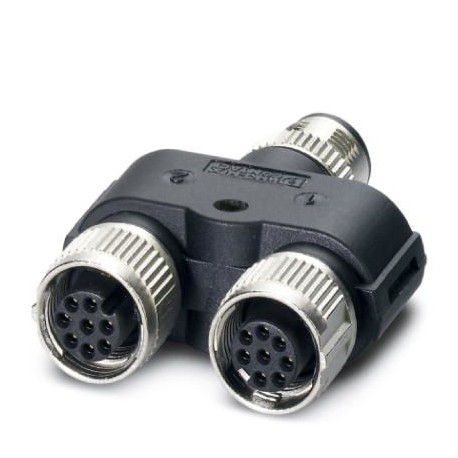

SAC-8PY-M/2XF BK 1-PSR 1054338 PHOENIX CONTACT Y distributor
SAC-8PY-M/2XF BK 1-PSR
1054338
PHOENIX CONTACT
1 Pcs.
Y distributor
Y-distributor for transponder of the PSR-CT series, male/female M12, 5 and 8 poles, for the safe series connection of up to 30 participants
Automation > Sensor actuator adapter
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1054338 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626694955 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40°C | 2 A |
|---|---|
| Rated voltage | 30 V AC |
| 30 V DC | |
| Color handle area | black |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 connector) |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Y-adapter |
| Screened (EF000881) | No |
| Housing material (EF001596) | Other |
| Ambient temperature (EF002386) | 90 °C |
| Operating temperature (EF002393) | -25 °C |
| Degree of protection (IP), mounted (EF007466) | IP65 |
| Material thread ring (EF012304) | Other |
| Rated voltage (EF000228) | 30 V |
| Rated current In (EF008250) | 2 A |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| Pollution degree (EF006786) | 1 |
| Material of contact surface (EF004020) | Nickel/gold |
