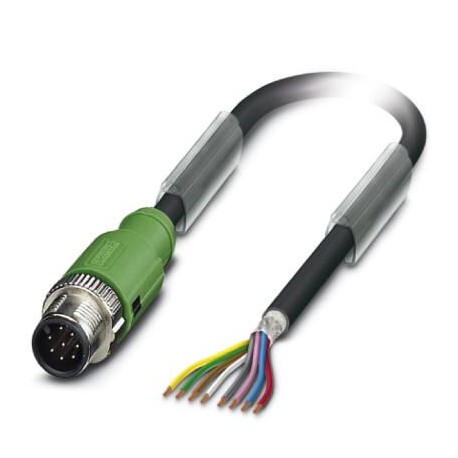

PHOENIX CONTACT SAC-8P-MS/ 3,5-PUR SH SCO SAC-8P-MS/ 3,5-PUR SH SCO 1426523 PHOENIX CONTACT Cable for sensors/actuators, 8-pole, PUR halogen-free, bla.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-8P-MS/ 3,5-PUR SH SCO 1426523 PHOENIX CONTACT Cable for sensors/actuators, 8-pole, PUR halogen-free, bla..

SAC-8P-MS/ 3,5-PUR SH SCO

1426523

PHOENIX CONTACT

25 Pcs.

Cable for sensors/actuators, 8-pole, PUR halogen-free, black-gray RAL 7021, shielded, Plug straight M12 SPEEDCON, coded, to the end of free cable, cable length: 3.5 m Sensor/actuator cable, 8-pole, halogen-free PUR, greyish black RAL 7021, shielded, M12 SPEEDCON straight male connector, coding: A, to free cable end, cable length: 3.5 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Cable, sensor-actuator, 8-pin, PUR without halogenated, black-grey RAL 7021, shielded, straight Male M12 SPEEDCON, A-coded, on the ends of conductor the free, cable length: 3.5 m

Commercial data

The code for the orderOne million four hundred twenty six thousand five hundred twenty three
Pieces/pack.1 PCS
Sales keyBF1CMA -
The amount of minimum order25 PCS
GTINFour trillion fifty five billion six hundred twenty six million four hundred sixty three thousand one
Weight per piece (package included)22,220 g
Number customs tariffEighty five million four hundred forty four thousand two hundred ninety

Size

Length. cable3.5 m

Environmental conditions

Ambient temperature (operation)-25 °C ... 90 °C (plug / connector female)

General

Rated current at 40 ℃Two
Rating voltage30 V AC
30 V DC
N. of polesEight
Insulation resistance≥ 100 MΩ
EncodingA - standard
Rules/ProvisionsM12 connector IEC 61076-2-101
Signalling status ofNo
Circuit/component protectionwithout circuit
Overvoltage categoryII
Pollution degreeThree
Number of operating cycles,≥ 100

Material

Class behaviour according to UL 94HB
Contact materialCuZn
Material surface contactsNi/Au
Insert material latchTPU GF
Material handlesTPU, hardly inflammable, self-extinguishing
Nut materialZinc die-cast, nickel-plated

Regulations and requirements

Definition standardM12 Connector
Rules/ProvisionsIEC 61076-2-101
Class behaviour according to UL 94HB

Cable

Cable typeEVEN without halogenated black
Cable type (abbreviation)WHILE
Abbreviation cablesLiF9YC11Y
UL AWM Style20549 / 10493 (80 °C / 300 V)
Conductor cross section8x 0.25 mm2 (signal Line)
Signal line AWGTwenty four
Tree conductor signal line32x 0.10 mm
Wire diameter including insulation1.17 mm ±0.02 mm
Insulation wall thicknessca. 0.2 mm
Color wirebrown, white, green, yellow, grey, pink, blue, red
Lay the entire8 wires around filler to the soul
ShieldingWire braid tinned copper
Cover screen optical85 %
External sheath, colorgrey-black RAL 7021
Wall thickness outer jacketca. 0.5 mm
Cable outer diameter D5.9 mm ±0.2 mm
Bend radius, minimum, fixed5 x D
Bend radius, minimum, flexible10 x D
The number of cycles of bendingTwo million
Bend radius, minimum, insert cable drag chains10 x D
Positioning movement10 m
Positioning speed3 m/s
Acceleration10 m/s2
The weight of the cable53 kg/km
Outer sheath, materialWHILE
Material insulation wirePP
The conductive materialCu wire bare
Insulation resistance≥ 1 GΩ*km (at 20 °C)
resistance of the conductor≤ 78 Ω/km (at 20 °C)
Rated voltage of cable≤ 300 V AC
Test voltage cable≥ 3000 V AC (Spark test)
Test voltage wire/shield≥ 2000 V AC (for 60 s)
Special featuresdrag chain
Flame resistancein accordance with UL FT-2
according to the UL 758/1581 (horizontal)
according to the UL 758/1581 FT2
according to DIN EN 60332-2-2 (20 s)
The absence of halogensaccording to DIN VDE 0472 Part 815
in accordance with DIN EN 50267-2-1
The other resistanceResistance to hydrolysis and microbes
sea-water resistant
non-adherent
non-adherent
UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, mobile installation)

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSPeriod for proper use: unlimited = EFUP-and
Any hazardous substances above the threshold values

Rankings

eCl@ss

eCl@ss 6.0Twenty seven million two hundred seventy nine thousand two hundred
eCl@ss 7.0Twenty seven million two hundred seventy nine thousand two hundred eighteen
eCl@ss 9.0Twenty seven million sixty thousand three hundred eleven

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855
