View larger
Images are for illustrative purposes only. Please refer to data sheet for details

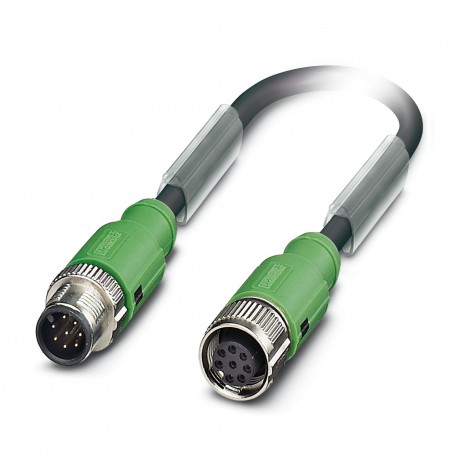

SAC-8P-MS/ 3,5-PUR/MS SH SCO 1403872 PHOENIX CONTACT Cable for sensors/actuators SAC-8P-MS/ 3,5-PUR/MS SH SC..
SAC-8P-MS/ 3,5-PUR/MS SH SCO
1403872
PHOENIX CONTACT
50 Pcs.
Cable for sensors/actuators - SAC-8P-MS/ 3,5-PUR/MS SH SCO - 1403872
Sensor/actuator cable, 8-pole, halogen-free PUR, greyish black RAL 7021, shielded, M12 SPEEDCON straight male connector, to M12 SPEEDCON straight male connector, cable length: 3.5 m
Sensor/actuator cable, 8-pin, halogen-free, grey-black RAL 7021, shielded, straight male M12 SPEEDCON, coding: A, on straight male M12 SPEEDCON, cable length: 3.5 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Cable for sensors/actuators, 8-pole, PUR halogen-free, black-gray RAL 7021, shielded, Plug straight M12 SPEEDCON, on Plug straight M12 SPEEDCON, cable length: 3.5 m
Data commercial
| Key order | One million four hundred three thousand eight hundred seventy two |
|---|---|
| Packing unit | 1 pcs |
| Key selling | BF1CMA - |
| EAN | Four trillion forty six billion three hundred fifty six million six hundred seventy one thousand nine hundred fifty eight |
| Unit weight (excluding packaging) | 214,300 g |
| Tariff number tariff | Eighty five million four hundred forty four thousand two hundred ninety |
Measures
| Cable length | 3.5 m |
|---|
Environmental conditions
| Room temperature (service) | -25 °C ... 90 °C (male / female) |
|---|---|
| Index of protection | IP65 |
| IP67 |
Overview
| Current sizing at 40 °C | 2 To |
|---|---|
| Tension sizing | 30 V AC |
| 30 V DC | |
| Number of poles | Eight |
| Insulation resistance | ≥ 100 MΩ |
| Encoding | A - standard |
| Status indication | Not |
| Category surge | II |
| Pollution degree | Three |
| Tightening torque | 0.4 Nm (M12 Connector) |
Material
| Class of flammability according to UL 94 | HB |
|---|---|
| Material contact | CuZn |
| Material contact surface | Ni/Au |
| Material support of contacts | TPU GF |
| Material body grip | TPU fire-retardant, self-extinguishing |
| Material knurled | Die-cast zinc, nickel plated |
| Material of the board | NBR |
Standards and specifications
| Class of flammability according to UL 94 | HB |
|---|
Cable
| Type of cable | PUR halogen-free black |
|---|---|
| Cable type (abbreviation) | PUR |
| Abbreviation of cable | LiF9YC11Y |
| UL AWM Style | 20549 / 10493 (80 °C/300 V) |
| Section of driver | 8x 0.25 mm2 (driver signals) |
| Signal cable AWG | Twenty four |
| Construction of the driver signal cable | 32x 0.10 mm |
| Diameter of the conductors, insulation included | 1,17 mm ±0.02 mm |
| Thickness of wall Insulation | approx. 0.2 mm |
| Colors driver | Brown, white, green, yellow, gray, pink, blue, red |
| Cabling total | 8 drivers about filling it as the soul |
| Shielding | Mesh of copper wires tinned |
| Cover visual screen | 85 % |
| Outer wrap, color | black-grey RAL 7021 |
| Wall thickness outer wrap | approx. 0.5 mm |
| Outer diameter of cable D | To 5.9 mm ±0.2 mm |
| Minimum bending radius, placed in a fixed manner | 5 x D |
| Minimum bending radius, placed in a flexible way | 10 x D |
| Number of bending cycles | Two million |
| Radius of curvature, insert drag chains | 10 x D |
| Journey forward | 10 m |
| Forward speed | 3 m/s |
| Acceleration | 10 m/s2 |
| Weight of the cable | 53 kg/km |
| Outer casing, material | PUR |
| Material Insulation conductor | PP |
| Conductive Material | Conductor Cu bare |
| Insulation resistance | ≥ 1 GΩ*km (at 20 °C) |
| Resistance of the conductor | ≤ 78 Ω/km (at 20 °C) |
| Rated voltage Cable | ≤ 300 V AC |
| Test voltage Cable | ≥ 3000 V AC Test (spark) |
| Test voltage Conductor/Screen | ≥ 2000 V AC (For 60 s) |
| Special features | suitable for drag chain |
| Flame resistance | according to UL FT-2 |
| according to UL 758/1581 (horizontal) | |
| according to UL 758/1581 FT2 | |
| according to DIN en 60332-2-2 (20 s) | |
| Absence of halogen | according to DIN VDE 0472 part 815 |
| according to DIN en 50267-2-1 | |
| Other resistors | resistant to hydrolysis and microbes |
| resistant to sea water | |
| little adherent | |
| little adherent | |
| conditionally UV-resistant according to DIN en ISO 4892-2-A | |
| Room temperature (service) | -40 °C ... 80 °C (cable, fixed) |
| -25 °C ... 80 °C (cable, available mobile) |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million sixty thousand three hundred six |
|---|---|
| eCl@ss 4.1 | Twenty seven million sixty thousand three hundred six |
| eCl@ss 5.0 | Twenty seven million sixty one thousand eight hundred one |
| eCl@ss 5.1 | Twenty seven million sixty one thousand eight hundred |
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 8.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 9.0 | Twenty seven million sixty one thousand eight hundred one |
ETIM
| ETIM 3.0 | EC001855 |
|---|---|
| ETIM 4.0 | EC001855 |
| ETIM 5.0 | EC001855 |
| ETIM 6.0 | EC000830 |
| ETIM 7.0 | EC003249 |
UNSPSC
| UNSPSC 6.01 | Thirty one million two hundred fifty one thousand five hundred one |
|---|---|
| UNSPSC 7.0901 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 11 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 12.01 | Thirty one million two hundred fifty one thousand five hundred one |
| UNSPSC 13.2 | Twenty six million one hundred twenty one thousand six hundred four |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 8 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 3.5 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuZn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| Rated current In (EF008250) | 2 A |
| Rated voltage (EF000228) | 30 V |
| Degree of protection (IP) (EF005474) | IP65 |
