SAC-8P-M12MS/60-28X/M12FSSHOD

1417739

PHOENIX CONTACT

25 Pcs.

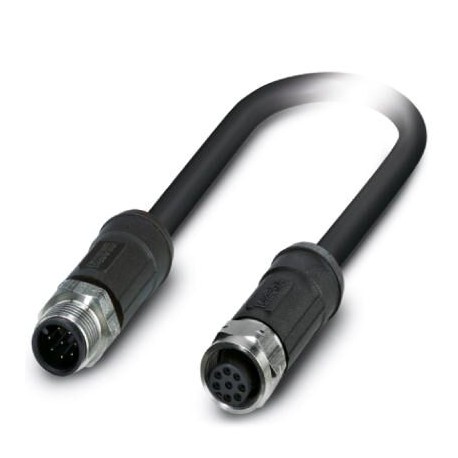

Sensor/actuator cable - SAC-8P-M12MS/60-28X/M12FSSHOD - 1417739 Sensor/actuator cable, 8-pole, halogen-free PE-X/PE-X, greyish black RAL 7021, shielded, M12 straight connector, coding: A, to M12 straight female, cable length: 60 m, for outdoor applications, with stainless steel knurling

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Sensor/actuator cable, 8-position, PE-X/PE-X halogen-free, black-gray RAL 7021, shielded, cable length: 60 m, for outdoor applications, with high-grade steel knurl

Key Commercial Data

Orderkey1417739
Packing unit1
GTIN4055626123172
Custom tariff number85444290

Dimensions

Length of cable60 m

Ambient conditions

Ambient temperature (operation)-40 °C ... 105 °C (Plug / socket)
-40 °C ... 85 °C (On sudden changes in temperature (according to IEC 60512-11-4))

General

Rated current at 40°C2 A
Rated voltage30 V AC
30 V DC
Number of positions8
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Status displayNo
Degree of pollution3

Material

Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPP
Material of grip bodyPP
Material, knurlsStainless steel
Sealing materialFPM

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101

Cable

Cable typePE-X black
Cable type (abbreviation)28X
Cable abbreviationLi2X2X-C-V1-2X
Conductor cross section8x 0.25 mm²
AWG signal line24
Conductor structure signal line32x 0.10 mm
Core diameter including insulation1.17 mm ±0.02 mm
Thickness, insulationapprox. 0.25 mm (Core insulation)
Wire colorswhite, brown, green, yellow, gray, pink, blue, red
Overall twist8 wires around filler to the core
Length of twist, overall twist67 mm
ShieldingBraided copper wires
Optical shield covering85 %
External sheath, colorblack-gray RAL 7021
Inner sheath thicknessapprox. 0.5 mm
Outer sheath thicknessapprox. 0.7 mm
External cable diameter D7.25 mm ±0,3 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles1000000
Minimum bending radius, drag chain applications10 x D
Traversing path10 m
Traversing rate3 m/s
Acceleration10 m/s²
Cable weight81 kg/km
Outer sheath, materialPE-X
Material, inner sheathPE-X
Material, fillerPP yarn
Material conductor insulationPE-X
Conductor materialBare Cu litz wires
Insulation resistance≥ 100 MΩ*km (at 20 °C)
Conductor resistance≤ 78 Ω/km (at 20 °C)
Working capacitanceapprox. 80 pF (core-core)
approx. 125 pF (core-shield)
Nominal voltage, cable≤ 300 V AC
Test voltage, cable≥ 3000 V AC (Spark test)
Test voltage Core/Shield≥ 1000 V AC (for 10 s)
Special propertiesInductance approx. 0.48 mH/km
Irradiated
Flame resistanceAccording to DIN EN 60332-1-2
according to DIN EN 50266-2-5
Halogen-freein accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
According to DIN EN 50306
Other resistanceResistance to fuels according to IEC 60811, 168 h at 70°C
UV resistant according to DIN VDE 0276-605
Ambient temperature (operation)-40 °C ... 105 °C (cable, fixed installation)
-15 °C ... 105 °C (cable, flexible installation)
20 °C ±5 °C (cable, drag chain applications)

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 5.127061801
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 13.231251501

ETIM for 1417739 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 60 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuSn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -15 °C
Rated current In (EF008250) 2 A
Rated voltage (EF000228) 30 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
