PHOENIX CONTACT SAC-8P-M12MS/3-PVC/FS SHOBS VA SAC-8P-M12MS/3-PVC/FS SHOBS VA 1404882 PHOENIX CONTACT Sensor/actuator cable, 8-pos., PVC, RAL 9005 (black),.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-8P-M12MS/3-PVC/FS SHOBS VA 1404882 PHOENIX CONTACT Sensor/actuator cable, 8-pos., PVC, RAL 9005 (black),..

SAC-8P-M12MS/3-PVC/FS SHOBS VA

1404882

PHOENIX CONTACT

50 Pcs.

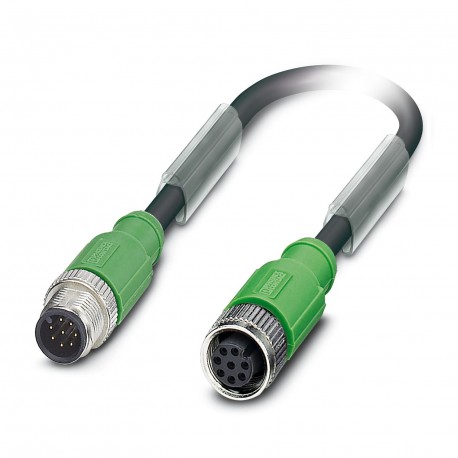

Sensor/actuator cable, 8-pos., PVC, RAL 9005 (black), shielded, straight M12 plug (A-coded) to straight M12 socket (A-coded), cable length: 3 m, with VA knurl Sensor/actuator cable, 8 poles, PVC, black RAL 9005, shielded, straight male connector M12, codif. A, to M12 straight connection female, codif. A, cable length: 3 m, with VA knurling

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1404882
Packing unit1
GTIN4046356726900
Custom tariff number85444290

Drawings

Dimensional drawing

Dimensional drawing
Plug, M12 x 1, straight, shielded

Dimensional drawing

Dimensional drawing
M12 x 1 socket, straight, shielded

Circuit diagram

Circuit diagram
Contact assignment of the M12 plug and the M12 socket

Schematic diagram

Schematic diagram
Pin assignment M12 plug, 8-pos., view plug side

Schematic diagram

Schematic diagram
Pin assignment M12 socket, 8-pos., A-coded, view female side

Back to top

Ambient conditions

Degree of protectionIP65
IP67
IP68
IP69K
Back to top

General

Rated current at 40°C2 A
Rated voltage30 V AC
30 V DC
Number of positions8
Insulation resistance≥ 100 MΩ
CodingA - standard
Status displayNo
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Back to top

Material

Flammability rating according to UL 94HB
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsStainless steel
Sealing materialNBR
Back to top

Standards and Regulations

Flammability rating according to UL 94HB
Back to top

Cable

NoteThe cable is not suitable for use with drag chains.
Cable typePVC black
Cable type (abbreviation)PVC
Cable abbreviationLiYF-C-Y
Conductor cross section8x 0.25 mm² (Signal line)
AWG signal line24
Conductor structure signal line32x 0.10 mm
Core diameter including insulation1.5 mm ±0.05 mm (Signal line)
Thickness, insulation≥ 0.38 mm (Conductor insulation, signal line)
≥ 0.76 mm (Outer cable sheath)
Wire colorswhite, brown, green, yellow, gray, pink, blue, red
Overall twist8 wires around filler to the core, twisted in with additional Cu litz in the wire outer godet
ShieldingTinned copper braided shield
Optical shield covering85 %
External sheath, colorblack RAL 9005
External cable diameter D7.7 mm ±0.2 mm
Smallest bending radius, fixed installation38.5 mm
Smallest bending radius, movable installation77 mm
Cable weight85 kg/km
Outer sheath, materialPVC
Material, fillerPVC
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Insulation resistance≥ 10 GΩ*km
Conductor resistance≤ 78 Ω/km
Nominal voltage, cable300 V
Test voltage, cable3000 V
Ambient temperature (operation)-25 °C ... 105 °C (cable, fixed installation)
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027060300
eCl@ss 4.127060300
eCl@ss 5.027061800
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311
Back to top

ETIM

ETIM 3.0EC001855
ETIM 4.0EC001855
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855
Back to top

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501
UNSPSC 19.031251501
UNSPSC 20.031251501
UNSPSC 21.031251501
Back to top

ETIM for 1404882 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) CuZn
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -25 °C
Rated current In (EF008250) 2 A
Rated voltage (EF000228) 30 V
Degree of protection (IP) (EF005474) IP65
