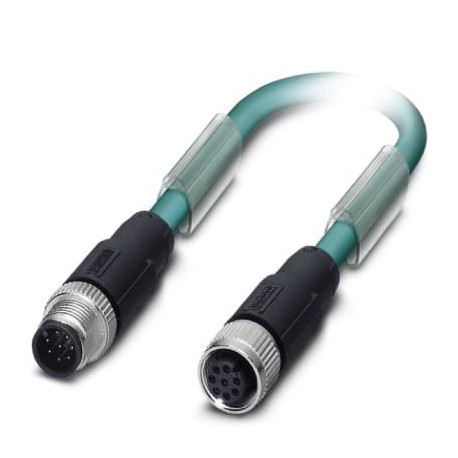

PHOENIX CONTACT SAC-8P-M12MS/10,0-940/M12FS SAC-8P-M12MS/10,0-940/M12FS 1554034 PHOENIX CONTACT Bus system cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-8P-M12MS/10,0-940/M12FS 1554034 PHOENIX CONTACT Bus system cable

SAC-8P-M12MS/10,0-940/M12FS

1554034

PHOENIX CONTACT

1 Pcs.

Bus system cable Bus system cable, CAT5 Ethernet (1 GBit/s), 8-pole halogen-free, shielded, M12 straight connector, encoding: A, a M12 straight female, encoding: A, cable length: 10 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1554034
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4046356161879
Weight per Piece (excluding packing)489.700 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable10 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
Degree of protectionIP65
IP67

General

Rated current at 40°C2 A
Rated voltage30 V AC
30 V DC
Number of positions8
Color handle areablack
Insulation resistance≥ 100 MΩ
CodingA - standard
Signal type/categoryEthernet CAT5 (IEC 11801), 1 Gbps
Status displayNo
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100

Material

Flammability rating according to UL 94HB
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Standards and Regulations

Flammability rating according to UL 94HB

Cable

Cable typeEthernet, flexible, CAT5
Cable type (abbreviation)94B
Cable abbreviation02YS(ST)C11Y
UL AWM style20963 (80°C/30 V)
Cable structure4x2xAWG26/7; SF/UTP
Conductor cross section4x 2x 0.14 mm²
AWG signal line26
Conductor structure signal line7x 0.16 mm
Core diameter including insulation0.96 mm
Wire colorswhite/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Twisted pairs2 cores to the pair
Overall twist4 pairs for core
ShieldingAluminum-coated foil, tinned copper braided shield
Optical shield covering70 %
External sheath, colorwater blue RAL 5021
Outer sheath thickness1.05 mm
External cable diameter D6.4 mm ±0.2 mm
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Cable weight47 kg/km
Tensile strength GRP≤ 100 N
Outer sheath, materialPUR
Material conductor insulationFoamed PE
Conductor materialBare Cu litz wires
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 290.00 Ω/km
Cable capacity48 nF/km (at 1 kHz)
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)71.3 dB (with 1 MHz)
62.3 dB (at 4 МHz)
56.3 dB (at 10 MHz)
53.2 dB (at 16 MHz)
51.8 dB (at 20 МHz)
48.9 dB (at 31.25 МHz)
44.4 dB (at 62.5 МHz)
41.3 dB (at 100 MHz)
Attenuation3.2 dB (with 1 MHz)
6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.6 dB (at 20 МHz)
17.1 dB (at 31.25 МHz)
24.8 dB (at 62.5 МHz)
32 dB (at 100 MHz)
Return Loss23 dB (at 4 МHz)
24.1 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
23.6 dB (at 31.25 МHz)
21.5 dB (at 62.5 МHz)
20.1 dB (at 100 MHz)
Signal runtime5.3 ns/m
Coupling resistance≤ 100.00 mΩ/m (at 10 MHz)
Nominal voltage, cable≤ 100 V
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700 V (50 Hz, 1 min.)
Flame resistanceaccording to IEC 60332-1-2
Halogen-freeaccording to IEC 60754-1
Resistance to oilaccording to EN 60811-2-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1554034 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Female (bus)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -20 °C
Rated current In (EF008250) 2 A
Rated voltage (EF000228) 30 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
