View larger
Images are for illustrative purposes only. Please refer to data sheet for details

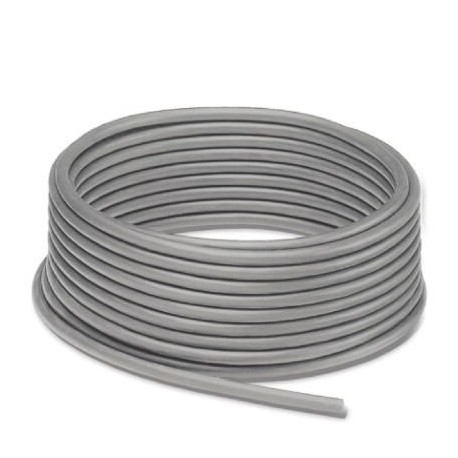

SAC-8P-500,0-285/SH-0,25 1030111 PHOENIX CONTACT Sensor/actuator cable
SAC-8P-500,0-285/SH-0,25
1030111
PHOENIX CONTACT
1 Pcs.
Sensor/actuator cable
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Standards and Regulations
| Resistance to oil | very good oil and chemical resistance |
|---|---|
| Other resistance | ozone and UV resistant |
| Low adhesion | |
| abrasion-resistant |
Cable
| Cable type | PUR, gray, shielded |
|---|---|
| Cable type (abbreviation) | 285 |
| Cable abbreviation | Li12YC11Y-HF |
| Conductor cross section | 4x 2x 0.25 mm² (Signal line) |
| 1x 0.25 mm² (Drain wire) | |
| AWG signal line | 24 |
| Conductor structure signal line | 32x 0.10 mm |
| Wire colors | white-brown, green-yellow, gray-pink, blue-red |
| Twisted pairs | 2 cores to the pair |
| Overall twist | 4 pairs for core |
| Shielding | Tinned copper braided shield |
| Optical shield covering | 85 % |
| External sheath, color | gray RAL 7001 |
| External cable diameter D | 7.6 mm ±0.2 mm |
| Minimum bending radius, flexible installation | 7.5 x D |
| Number of bending cycles | 3000000 |
| Bending radius | 100 mm |
| Traversing path | 1.2 m |
| Traversing rate | 1.4 m/s |
| Acceleration | 2 m/s² |
| Outer sheath, material | PUR |
| Material conductor insulation | PES |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | ≥ 100 MΩ*km |
| Nominal voltage, cable | 350 V |
| Test voltage, cable | 1200 V |
| Resistance to oil | very good oil and chemical resistance |
| Other resistance | ozone and UV resistant |
| Low adhesion | |
| abrasion-resistant | |
| notch tough | |
| Ambient temperature (operation) | -50 °C ... 80 °C (cable, fixed installation) |
| -40 °C ... 80 °C (cable, flexible installation) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
